Remove/install CD changer - AR82.64-P-7508V

MODEL 171.4 with CODE (819) 6-disk CD changer

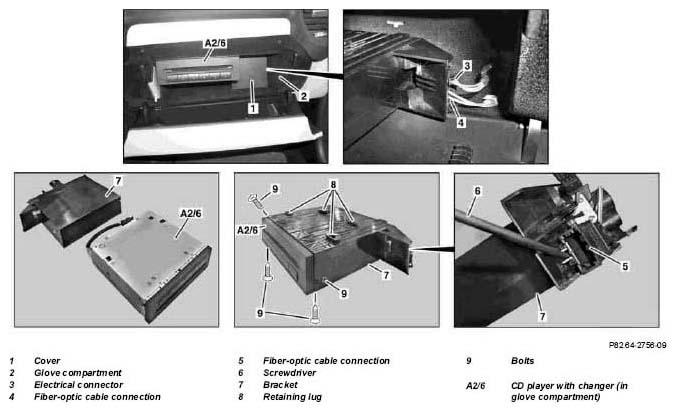

Fig 1: Identifying CD Changer Components

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Open cover of glove compartment (2)
2	Unclip cover (1) by hand and remove out of glove compartment (2)
3	Pull CD player with changer (in glove box) (A2/6) towards the rear and pull out of glove box (2) until the electrical connector (3) is accessible	Installation:  Insert retaining lugs (8) on bracket (7) of CD player with changer (in glove compartment) (A2/6) in to the glove compartment's receptacle (2).
4	Disconnect electrical connector (3)
5	Unplug fiber optic cable connector (4)
6	Cover fiber optic cable
7	Remove the CD player with changer (in glove compartment) (A2/6) from the glove compartment (2)
8.1	Release the fiber optic cable connector (5) using a suitable screwdriver (6) and remove from bracket (7)	Only when replacing the CD player with changer (in glove compartment) (A2/6).
9.1	Undo screws (9) and pull out CD player with changer (in glove compartment) (A2/6) from the bracket (7)	Only when replacing the CD player with changer (in glove compartment) (A2/6). Pay attention to routing of cables.
10	Install in the reverse order
