Removing and installing loudspeaker in rear center - AR82.62-P-7840V
MODELS 171.4 with CODE (810) sound system
| Remove/Install | ||
|---|---|---|

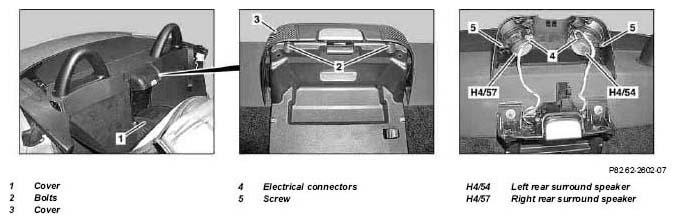

| 1 | Open cover (1) | |
| 2 | Unscrew bolts (2) and remove cover (3) | |
| 3 | Detach electrical connector (4) from left rear surround speaker (H4/54) or right rear surround speaker (H4/57) | |
| 4 | Unscrew both bolts (5) from left rear surround speaker (H4/54) or right rear surround speaker (H4/57) | |
| 5 | Remove left rear surround speaker (H4/54) or right rear surround speaker (H4/57) from cover (3) | |
| 6 | Install in the reverse order |
