Remove/install rear wall paneling - AR68.30-P-4750V

MODEL 171.4

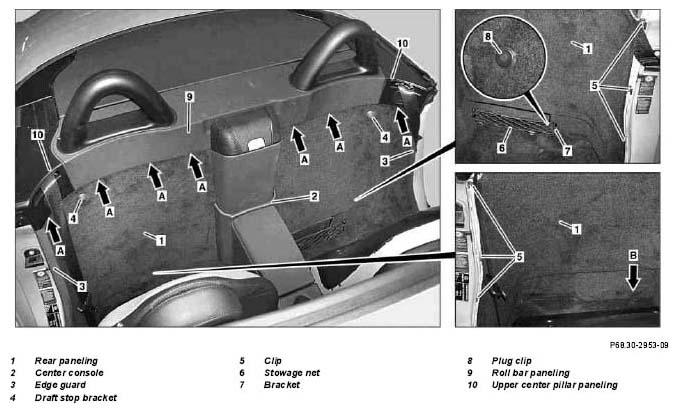

Fig 1: Identifying Rear Wall Paneling Components

Courtesy of MERCEDES-BENZ USA

	Remove/Install
1	Open Vario roof	See Operating Instructions
2	Remove center console (2)		AR68.20-P-2000V
3	Remove left and right door sill molding		AR68.30-P-4100V
4	Remove left and right edge guard (3) and loosen rear paneling (1) from clips (5) with mounting wedge		Figure
5	Unscrew left and right draft stop bracket (4) by hand
6	Unclip stowage net (6) from bracket (7) and remove clip (8)
7	Loosen rear upper paneling (1) from guides (arrow A) for roll bar paneling (9) and left and right upper center pillar paneling (10)	Installation:  Ensure that rear paneling (1) is seated correctly in guides (arrow A).
8	Loosen rear paneling (1) at bottom of Velcro strip (arrow B) and in area of stowage net and remove from vehicle	Installation:  Ensure that rear paneling (1) is seated correctly on Velcro strip. Observe (arrow B) and in area of stowage net (6).
9	Install in the reverse order

Fig 2: Identifying Mounting Wedge (110 589 03 59 00)

Courtesy of MERCEDES-BENZ USA
