Remove/install master cylinder - AR25.20-P-0100V
MODELS 171.4 with TRANSMISSION 716.6
| Remove/Install | |||
|---|---|---|---|
| Risk of death caused by vehicle slipping or toppling off of the lifting platform. | Align vehicle between the columns of the lifting platform and position the four support plates below the hoist support points specified by the vehicle manufacturer. | - | |
| Risk of poisoning caused by swallowing brake fluid. Risk of injury caused by brake fluid coming into contact with skin and eyes. | Pour brake fluid only into suitable and appropriately marked containers. Wear protective clothing and eye protection when handling brake fluid. | - | |
| Brake fluid notes | AH42.50-P-0001-01A | ||
| 1 | Remove left cover below instrument panel | AR68.10-P-1500V | |

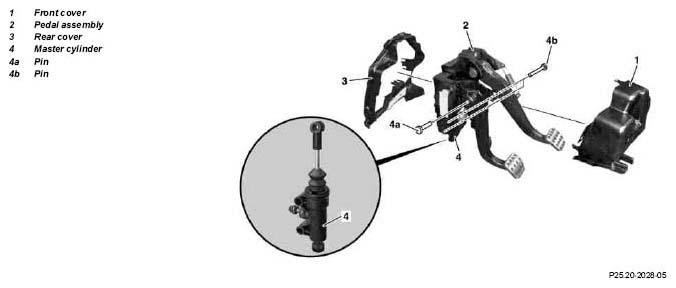

| 2 | Remove front cover (1) of pedal assembly (2) | AR29.10-P-0320V | |
| 3 | Remove foot controls (2). | AR29.10-P-0300V | |
| 4 | Remove rear cover (3) of the pedal assembly (2) | AR29.10-P-0320V | |
| 5 | Lever out bolt (4). | ||
| *BR00.45-Z-1001-06A | |||
| 6 | Lever out bolt (4b). | ||
| Long-life grease | *BR00.45-Z-1001-06A | ||
| 7 | Remove master cylinder (4) from pedal assembly (2) | ||
| Install in the reverse order | |||
| 8 | Bleed clutch operating system | AR25.20-P-0070V | |
| Check | |||
| 9 | Check the clutch operator for proper operation and leaktightness |
REPAIR MATERIALS
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1001-06A | Long-life grease | A 000 989 63 51 |
