Remove/install transmission with torque converter - AR27.10-P-0500V

TRANSMISSION 722.999 in MODEL 171.454

TRANSMISSION 722.906 in MODEL 171.456

TRANSMISSION 722.907 in MODEL 171.473

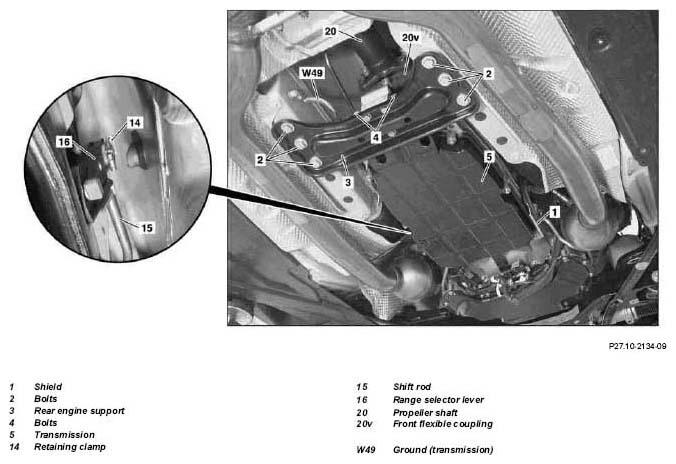

Fig 1: Identifying Torque Converter Components
G05027287Courtesy of MERCEDES-BENZ USA

Shown on model 171.456

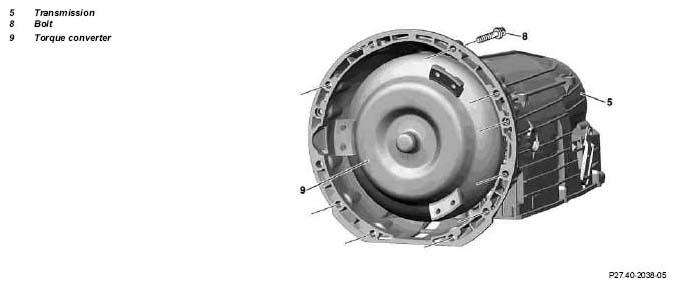

Fig 2: Identifying Transmission And Torque Converter
G05027288Courtesy of MERCEDES-BENZ USA
MODIFICATION NOTES

12.4.06 Bolt, oil cooler line to engine oil pan   *BA27.55-P-1003-01D
7.6.06 Installed height of torque converter Model 722.9 transmissions, with exception of model 722.906
  Installed height of torque converter Transmission 722.906
13.6.06 Measurement for determining installed height of torque converter changed Step 20 AR27.20-P-0500-01W
REMOVINGINSTALLING Remove/install
NOTES Before starting work, the area around the oil cooling lines must be thoroughly cleaned on the transmission (5) in the area around the separation points. Even the smallest dirt particles in the hydraulic components can lead to malfunctions and a total failure of the transmission (5).
1 Move selector lever into position "N"
2 Release parking brake
3 Open engine hood   AR88.40-P-1000V
4 Disconnect ground cable of battery   AR54.10-P-0003V
NOTES -   -
5 Raise vehicle with lifting platform   AR00.60-P-1000V
6 Remove bottom engine compartment paneling   AR61.20-P-1105V
7.1 Detach electrical connector of heated O2 probes Model 171.454/456 AR07.52-P-5303VA
7.2 Remove complete exhaust system Model 171.473 AR49.10-P-7000VT
8 Unclip all electrical feed lines from retaining clamps at transmission (5).
9 Remove shield (1) and detach electrical connector from electric controller unit.   AR27.40-P-0700-01V
    TORQUE SPECIFICATION *BA27.40-P-1014-01A
10 Detach shift rod (15) at range selector lever (16) of transmission (5) IMPORTANTInstallation:  Install new retaining clamp (14). AR27.60-P-0990VA
11 Support transmission (5) with COMMERCIALLY AVAILABLE TOOLS transmission jack and COMMERCIALLY AVAILABLE TOOLS transmission platform and lash down securely. COMMERCIALLY AVAILABLE TOOLS *WE58.40-Z-1030-11A
    COMMERCIALLY AVAILABLE TOOLS *WE58.40-Z-1018-11A
12 Unscrew bolts (2, 4) and remove rear engine support (3) with rear engine mount INSPECT Check rear engine mount for wear and replace if necessary. AR22.10-P-1160VA
    IMPORTANTInstallation:  Attach ground (transmission) (W49) to rear engine mount.
Engine 113

    TORQUE SPECIFICATION Bolt, rear engine crossmember to body *BA22.10-P-1006-01S
    TORQUE SPECIFICATION Bolt of rear engine mount to transmission *BA22.10-P-1004-01S
    Engine 272
    TORQUE SPECIFICATION Bolt, rear engine crossmember to body *BA22.10-P-1003-01O
    TORQUE SPECIFICATION Bolt of rear engine mount to transmission *BA22.10-P-1008-01O
13 Remove front flexible coupling (20v) IMPORTANT If the fitted sleeves are jammed: ↓ AR41.10-P-0050-02V
    Loosen fitting sleeves of flexible coupling (20v). AR41.10-P-0050-09V
REFER TO SHOP-MADE TOOLS   Prepare drift for loosening fitted sleeves in flexible couplings. WF58.50-P-4110-01A
    IMPORTANTInstallation:  Attach front propeller shaft (20) to transmission (5). AR41.10-P-0050-07V
    TORQUE SPECIFICATION *BA41.10-P-1001-01A
14 Detach torque converter (9) from driven plate NOTES Do not use an impact wrench or compressed-air tool, otherwise the threaded unions of the drive plate will be damaged. AR27.20-P-0100-01A
    TORQUE SPECIFICATION *BA27.20-P-1002-01C
    SPECIAL TOOL Fig 3
15 Press torque converter (9) evenly off driven plate using SPECIAL TOOL long wedge NOTES Do not damage torque converter (9) and driven plate.
    SPECIAL TOOL Fig 5
16 Detach right and left oil cooling line from transmission (5) and engine oil pan and place to the side. NOTES Do not bend or kink oil cooling lines.
IMPORTANT Seal connections on transmission (5) and on the oil cooling lines with SPECIAL TOOL stop plugs

    SPECIAL TOOL Fig 4
    IMPORTANTInstallation:  Replace O-rings.
    TORQUE SPECIFICATION *BA27.55-P-1003-01D
    TORQUE SPECIFICATION *BA27.55-P-1004-01D
    TORQUE SPECIFICATION *BA27.55-P-1002-01D
17 Detach starter from transmission (5). IMPORTANT Place starter to the side with lines connected and secure to prevent it falling down.
    Model 171.454/456 AR15.30-P-7100VA
    Model 171.473 AR15.30-P-7100VT
18 Remove bolts (8) IMPORTANTInstallation:  Secure bracket of electric feed lines at transmission (5).
    TORQUE SPECIFICATION *BA27.40-P-1008-01A
19 Remove transmission (5) from below NOTES Secure torque converter (9) to prevent it from falling out.
IMPORTANT Installation: Align the holes of the torque converter (9) with the threaded unions in the driven plate.

20 Remove torque converter (9) SPECIAL TOOL with grab handles If necessary AR27.20-P-0500-01W
INSPECT Checking
21 Check threaded unions in driven plate IMPORTANT If the threaded unions are damaged or loose the driven plate must be replaced.
22 Install in the reverse order
23 Perform basic programming   AR00.19-P-0200V
24 Fill transmission (5) with transmission oil When installing new transmission (5) or if the transmission oil has been drained. AR27.00-P-0270W
25 Check transmission oil level; correct if necessary   AR27.00-P-0100W
26 Read out fault memory with STAR DIAGNOSIS and erase if necessary. STAR DIAGNOSIS diagnosis system *WH58.30-Z-1048-13A
27 Perform transmission adaptation A Transmission adaptation must be carried out after exchanging or repairing the transmission (5).
DANGER Risk of accident  caused by vehicle starting off by itself when engine is running. Risk of injury  caused by contusions and burns during starting procedure or when working near the engine as it is running Secure vehicle to prevent it from moving by itself.
Wear closed and snug-fitting work clothes.
Do not touch hot or rotating parts.
-
28 Carry out engine test run and check transmission (5) for function and leaks
HOUSING

Number Designation Transmission 722.9
BA27.40-P-1008-01A Bolt, automatic transmission to engine M10 x 40 Nm 38
M10 x 90 Nm 38
M12 Nm -
BA27.40-P-1014-01A Bolt, heat shield to transmission housing Nm 9
TRANSMISSION OIL COOLING

Number Designation Transmission 722.9
BA27.55-P-1002-01D Bolt, transmission oil line to transmission housing Banjo bolt Stage 1 Nm 5
Stage 2 ∠° 90
Hex. screw Nm 12
BA27.55-P-1003-01D Bolt, oil cooler line to engine oil pan Nm 12
BA27.55-P-1004-01D Bolt, dual clamp to oil line Nm 8
PROPELLER SHAFT

Number Designation Model 171
BA41.10-P-1001-01A Self-locking nut of flexible joint to transmission or front propeller shaft M10 Nm 40
M12 Nm 60
ENGINE SUSPENSION, ENGINE MOUNTS, ENGINE SUPPORTS

Number Designation Engine 113.989 in model 171
BA22.10-P-1004-01S Bolt, rear engine mount to transmission Nm 50
BA22.10-P-1006-01S Bolt, rear engine crossmember to body Nm 50
ENGINE SUSPENSION, ENGINE MOUNTS, ENGINE SUPPORTS

Number Designation Engine 272 in model 171
BA22.10-P-1003-01O Bolt, rear engine crossmember to body Nm 50
BA22.10-P-1008-01O Bolt, rear engine mount to transmission Nm 50
TORQUE CONVERTER

Number Designation Transmission 722.9
BA27.20-P-1002-01C Bolt, torque converter to drive plate Straight threaded connection Nm 42
Helical cut Stage 1 Nm 4
Stage 2 Nm 30
Stage 3 ∠° 90
Fig 3: Identifying Wrench Socket (001 589 65 09 00)
G05027289Courtesy of MERCEDES-BENZ USA
Fig 4: Identifying Set Of Stop Plugs (129 589 00 91 00)
G05027290Courtesy of MERCEDES-BENZ USA
Fig 5: Identifying Long Wedge (115 589 03 59 00)
G05027291Courtesy of MERCEDES-BENZ USA
COMMERCIALLY AVAILABLE TOOLS

Number Designation
WH58.30-Z-1048-13A STAR DIAGNOSIS diagnosis system, Compact Passenger Car 6511 1801 00
WORKSHOP EQUIPMENT

WE58.40-Z-1018-11A Transmission platform
WE58.40-Z-1030-11A Transmission jack
