Remove/install camber strut - AR35.20-P-0110V
MODEL 171.442 /454 /456 /473

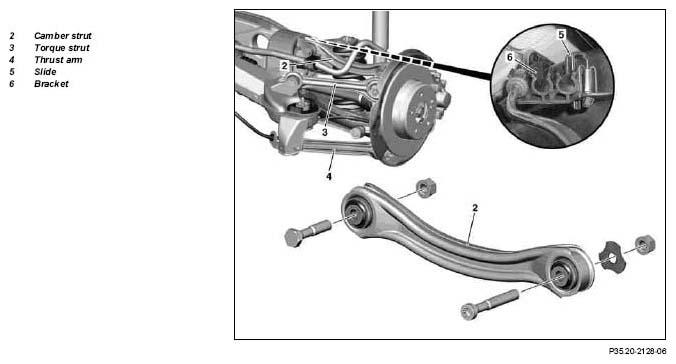

Illustrated on model 171.442
MODIFICATION NOTES
| 2.5.07 | Self-locking nut, strut rod to wheel carrier, M12 | *BA35.20-P-1002-03A |
| Remove/install | |||
|---|---|---|---|
| Risk of death caused by vehicle slipping or toppling off of the lifting platform. | Align vehicle between the columns of the lifting platform and position the four support plates at the lifting platform support points specified by the vehicle manufacturer. | - | |
| 1 | Raise vehicle with lifting platform | AR00.60-P-1000V | |
| 2 | Remove wheel. | ||
| Remove/install wheels, rotate if necessary | AP40.10-P-4050V | ||
| 3 | Detach thrust arm (4) from wheel carrier | *BA35.20-P-1003-05A | |
| 4 | Detach torque strut (3) from wheel carrier and put upwards | *BA35.20-P-1002-03A | |
| 5 | Pull slide (5) upwards and unclip bracket (6) | ||
| 6 | Detach camber strut (2) from rear axle carrier | *BA35.20-P-1001-02A | |
| Fig 2 | |||
| 7 | Detach camber strut (2) from wheel carrier | *BA35.20-P-1003-02A | |
| Fig 3 | |||
| 8 | Install in the reverse order |
TORQUE STRUT
| Number | Designation | Model 171 | |
|---|---|---|---|
| BA35.20-P-1003-05A | Self-locking nut, thrust arm to wheel carrier | Nm | 50 |
| ∠° | 45 | ||
CAMBER STRUT
| Number | Designation | Model 171 | ||
|---|---|---|---|---|
| BA35.20-P-1001-02A | Self-locking nut, camber strut to rear axle carrier. | Stage 1 | Nm | 50 |
| Stage 2 | ∠° | 45 | ||
| BA35.20-P-1003-02A | Self-locking nut, camber strut to wheel carrier. | Stage 1 | Nm | 50 |
| Stage 2 | ∠° | 45 | ||
TORQUE STRUT
| Number | Designation | Model 171 | ||
|---|---|---|---|---|
| BA35.20-P-1002-03A | Self-locking nut, torque strut to wheel carrier | M12 | Nm | 70 |
| M16 | Nm | - | ||
