Remove/install power steering pump - AR46.30-P-0500VT
MODEL 171.473 with ENGINE 113.989
| Remove/install | |||
|---|---|---|---|
| Risk of injury to skin or eyes caused by hydraulic fluid spraying out under high pressure. Risk of poisoning caused by swallowing hydraulic fluid | Depressurize the hydraulic system completely before starting any work on the system. Wear protective clothing and safety glasses. | - | |
| 1 | Remove front engine cover | ||
| 2 | Remove poly-V belt (130) | - | |
| 3 | Remove left air intake hose | ||
| 4 | Suction off oil from reservoir (30a) of power steering pump (30) | ||

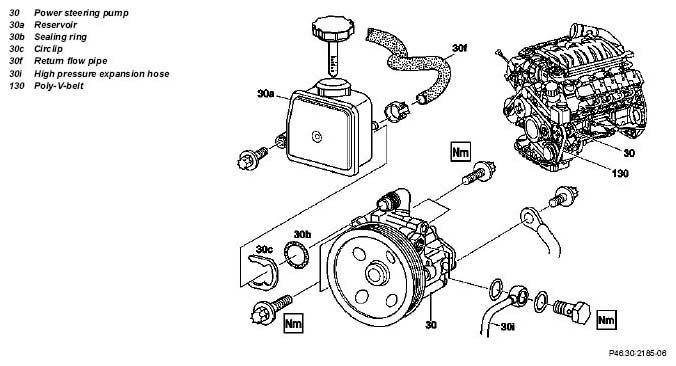

| Figure | |||
| 5 | Detach return line (30f) from reservoir (30a) of power steering pump | ||
| *BA46.30-P-1004-01D | |||
| Figure | |||
| 6 | Unscrew high pressure expansion hose (30i) from power steering pump (30). | ||
| *BA46.30-P-1003-01D | |||
| Figure | |||
| 7 | Unscrew bolt on reservoir (30a) | *BA46.30-P-1001-01D | |
| 8 | Disconnect ground cable behind power steering pump (30) | *BA46.30-P-1001-01D | |
| 9 | Remove power steering pump (30) and move out forwards | ||
| *BA46.30-P-1001-01D | |||
| 10 | Pull out circlip (30c) with extraction hook and remove reservoir (30a) | ||
| Figure | |||
| 11 | Install in the reverse order | ||
| 12 | Fill power steering pump and bleed | AR46.30-P-0010V |
POWER STEERING PUMP
| Number | Designation | Model 171 with engine 113 | |
|---|---|---|---|
| BA46.30-P-1001-01D | Bolt, power steering pump to control housing | Nm | 20 |
| BA46.30-P-1003-01D | Banjo bolt, high pressure expansion hose to power steering pump | Nm | 45 |
| BA46.30-P-1004-01D | Return line on power steering pump | Nm | 2 |
