Remove/install electric steering lock (ESL) - AR46.10-P-0910V

MODEL 171.4

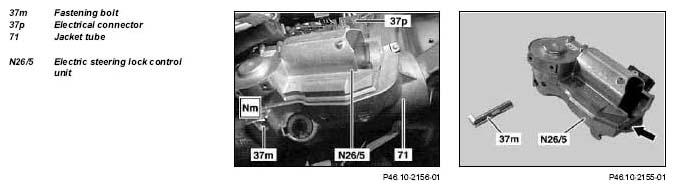

Fig 1: Identifying Electric Steering Lock (ESL) Components

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Remove left cover under the instrument panel		AR68.10-P-1500V
2	Insert electronic ignition key into ignition switch	The fastening bolt (37m) can only be removed if the electric steering lock control unit (N26/5) is unlocked.
3	Turn and remove fastening bolt (37m) to recess clearance.		*BA46.10-P-1006-03N
4	Guide electric steering lock control unit (N26/5) backwards out of jacket tube (71).	Installation:  Move electric steering lock control unit (N26/5) with the front surface (arrow) into the jacket tube (71).
5	Detach electrical connector (37p) at electric steering lock control unit (N26/5).
6	Install in the reverse order

JACKET TUBE

Number	Designation		Model 171
BA46.10-P-1006-03N	Fastening bolt, electric steering lock to jacket tube	Nm	10
