Remove/install roll bar - AR91.50-P-2000V

MODEL 171.4

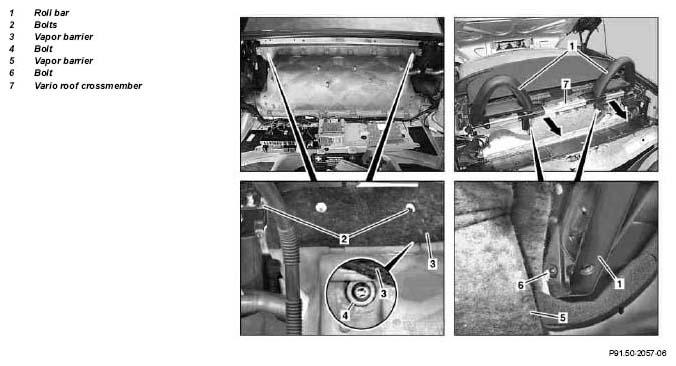

Fig 1: Identifying Roll Bar Components

Courtesy of MERCEDES-BENZ USA

MODIFICATION NOTES

3.8.05

Screw, roll bar to Vario roof crossmember

Model 171

*BA91.50-P-1005-01A

	Remove/install
1	Remove upper trunk center paneling		AR68.30-P-4810VA
2	Remove s crews (2) from the left or right roll bar (1)		*BA91.50-P-1005-01A
3	Lift up the dampening material (3) and remove the screw (4) from the left or right roll bar (1)		*BA91.50-P-1005-01A
4	Remove the cover from the Vario roof crossmember		AR77.30-P-3976V
5	Lift up soundproofing (5) and remove s crew (6) from the left or right roll bar (1)		*BA91.50-P-1005-01A
6	Swing the left or right roll bar (1) inward toward the front (arrow) and remove it from the Vario roof crossmember (7)
7	Install in the reverse order

ROLL BAR MECHANISM

Number	Designation			Model 171
BA91.50-P-1005-01A	Screw, roll bar to Vario roof crossmember	M6	Nm	9
		M8	Nm	12
