Remove/install drive shaft protection for seat fore/aft adjustment - AR91.10-P-3436V
MODEL 171.4## ## as of 191915
with CODE (275) Memory package (driver seat, steering column, mirrors)
with CODE (242) Electrically adjustable front passenger seat with memory
| Removing | ||

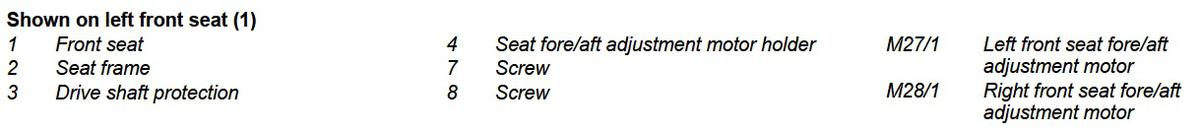

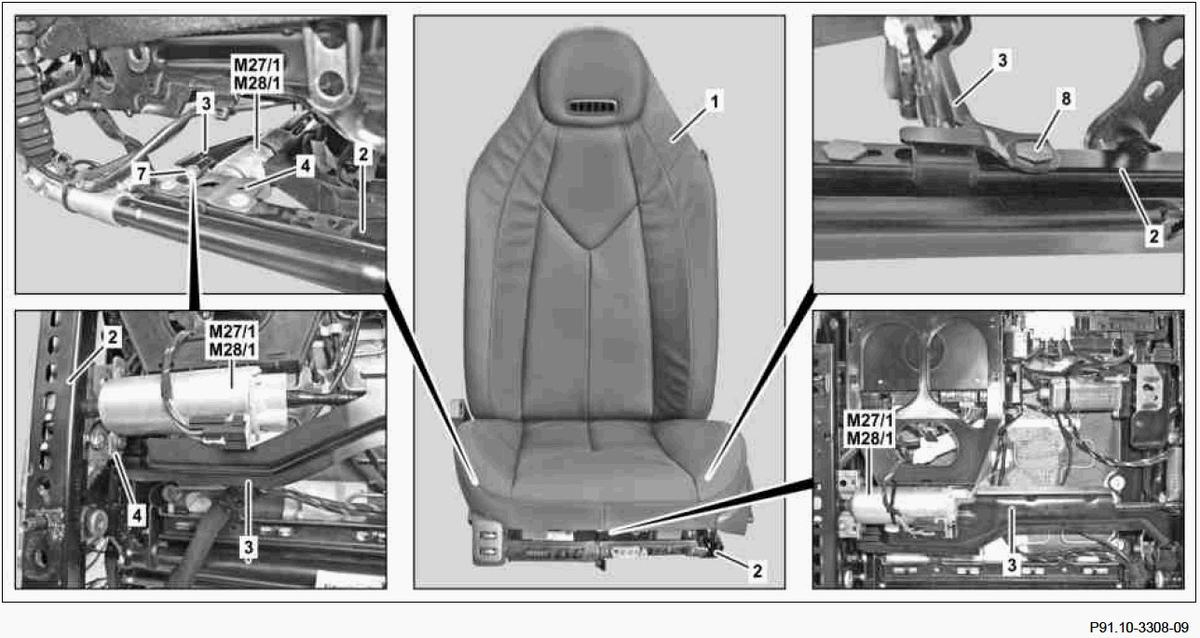

| 1 | Remove left or right front seat (1) | AR91.10-P-1000V |
| 2 | Remove bolt (7) from seat fore/aft adjustment motor holder (4) and drive shaft protection (3) | |
| 3 | Remove bolt (8) from seat frame (2) | |
| 4 | Remove drive shaft protection (3) | |
| Install | ||
| 5 | Position drive shaft protection (3) at threaded connection points on the seat frame (2) | |
| 6 | Screw in bolt (8) by hand until it makes contact | |
| 7 | Screw in bolt (7) through the drive shaft protection (3) and into the seat fore/aft adjustment motor holder (4) and then tighten | |
| 8 | Tighten bolt (8) at seat frame (2) | |
| 9 | Install front seat (1) | AR91.10-P-1000V |
