Remove/ install activated charcoal canister - AR47.30-P-8212V
MODEL 171 with ENGINE 113.989, 271, 272
| Remove/Install | |||
|---|---|---|---|
| Risk of explosion caused by fuel igniting, risk of poisoning caused by inhaling and swallowing fuel as well as risk of injury to eyes and skin caused by contact with fuel. | No fire, sparks, open flames or smoking. Pour fuels only into suitable and appropriately marked containers. Wear protective clothing when handling fuel. |
- | |
| Risk of death cased by vehicle slipping or toppling off of the lifting platform. | Align vehicle between the columns of the hydraulic hoist and position the four support plates below the hoist support points specified by the vehicle manufacturer. | - | |
| 1 | Raise vehicle. | AR00.60-P-1000V | |

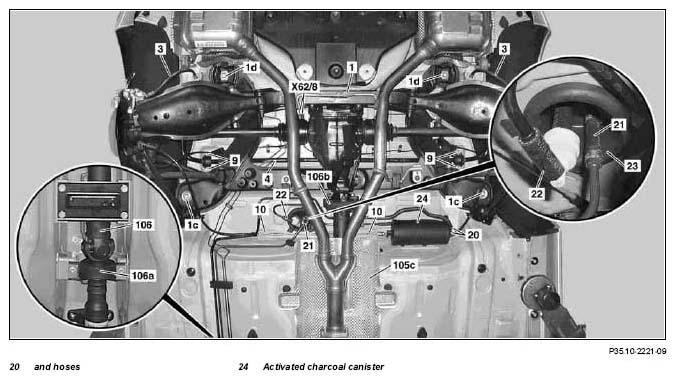

| 2 | Mark the hoses (20) | ||
| 3 | Disconnect hoses (20) | ||
| 4 | Push activated charcoal canister (24) to the vehicle center and remove | ||
| 5 | Install in the reverse order |
