Removing/installing the engine oil cooler - AR18.30-P-1000VT
ENGINE 113.989 in MODEL 171.473
| Removing/installing | |||
|---|---|---|---|
| Risk of death caused by vehicle slipping or toppling off the lifting platform. | Align vehicle between the columns of the hydraulic hoist and position the four support plates below the hoist support points specified by the vehicle manufacturer. | - | |

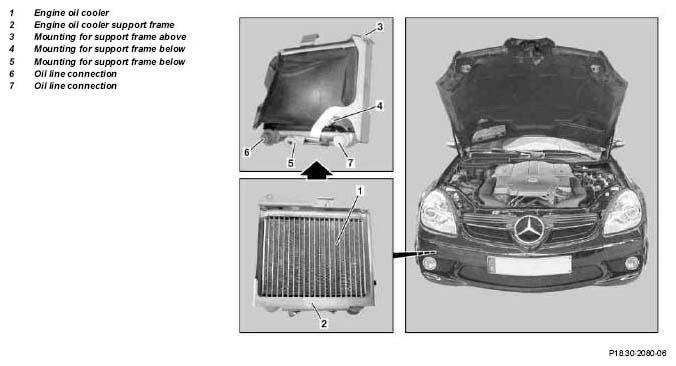

| 1 | Loosen nut on mounting for support frame above (3) on engine oil cooler support frame (2) | *BA18.30-P-1007-01B | |
| 2 | Remove lower engine compartment paneling | AR61.20-P-1105V | |
| 3 | Unscrew oil line on oil line (6) connection and oil line on oil line (7) connection | *BA18.30-P-1003-01B | |
| Fig 2 | |||
| 4 | Unscrew nut on mounting for support frame below (5) and bolt on mounting for support frame below (4) on engine oil cooler support frame (2) | *BA18.30-P-1007-01B | |
| 5 | Disconnect tie strap on electrical connections on engine oil cooler | ||
| 6 | Detach engine oil cooler (1) with engine oil cooler support frame (2) and remove downwards | ||
| 7 | Install in reverse order | ||
| Risk of accident caused by vehicle starting off by itself when engine is running. Risk of injury caused by contusions and burns when working in engine during starting procedure | Secure vehicle to prevent it from moving. Wear closed and snug-fitting work clothes. Do not grasp hot or rotating parts. |
- | |
| 8 | Run engine and inspect for leaks | ||
| 9 | Check engine oil level, replenish oil if necessary |
OIL COOLING SYSTEM TORQUE SPECIFICATIONS
| Number | Designation | Engine 113.989 | |
|---|---|---|---|
| BA18.30-P-1003-01B | Oil line to oil cooler | Nm | 30 |
| BA18.30-P-1007-01B | Nut for bracket on retaining frame | Nm | 9 |
