Instrument cluster, component description - GF54.30-P-6000RC

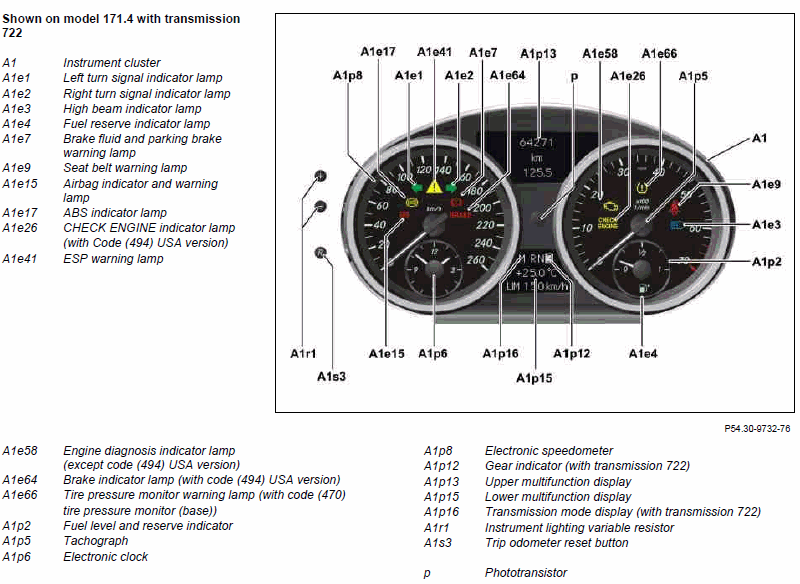

Fig 1: Instrument Cluster Component Description

G00541375

Courtesy of MERCEDES-BENZ USA
