Displaying coolant temperature, function - GF54.30-P-3020SK
MODELS 171.4

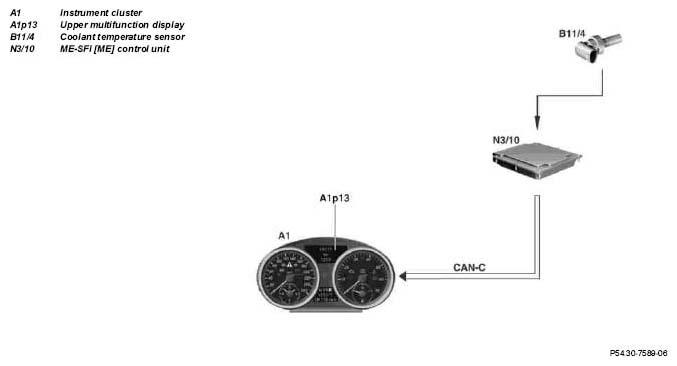

The coolant temperature is recorded by the coolant temperature sensor (B11/4). The signals of the coolant temperature sensor (B11/4) are read in by the motor electronics control unit (N3/19 and placed on the Controller Area Network bus class C (CAN-C).
The instrument cluster (A1) receives these signals and actuates the coolant temperature gauge in the upper multifunction display (A1p13).
The display accuracy of the coolant temperature gauge is ± 1.5°C.
| Instrument cluster (IC), location/task | GF54.30-P-3039SK |
