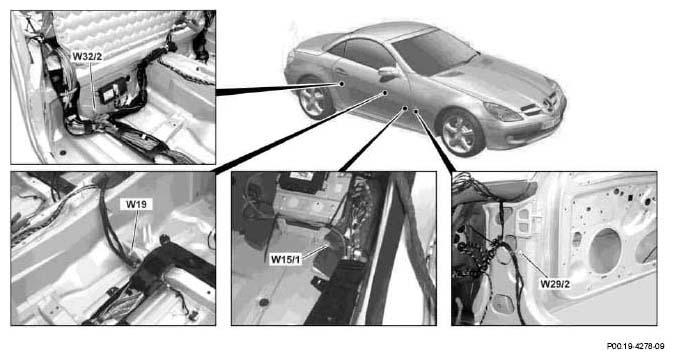

| W15/1 |
Ground (right footwell) |
→ N93/1 |
Audio gateway control module |
2.3 |
| W19 |
Ground (right front seat crossmember) |
→ N25/7 |
Front HS [SIH], AIRSCARF and steering wheel heater control unit |
1.1 |
| |
|
→ N32/2 |
Front passenger front seat adjustment control module with memory |
1.10 |
| |
|
→ R13/3 |
Right front seat heated cushion |
2 |
| |
|
→ R13/4 |
Right front backrest heated cushion |
1 |
| |
AIRSCARF |
→ R22/6 |
Right AIRSCARF heating element |
1 |
| W29/2 |
Ground (right A-pillar) |
→ A2/6 |
CD changer (in glove compartment) |
1A.2 |
| |
|
→ A32 |
AC recirculation unit |
1 |
| |
K-KLA |
→ B31 |
C-AAC [K-KLA] multifunction sensor |
1 |
| |
Up to 05/05 |
→ E13/2 |
Glove compartment illumination with switch |
1 |
| |
|
→ E17/15 |
Right front footwell lamp |
1 |
| |
Up to 07/06 |
→ M14/18 |
Glove compartment CL [ZV] motor |
2 |
| |
|
→ N18 |
HEAT pushbutton control module |
1.16 |
| |
KLA |
→ N22 |
AAC pushbutton control module |
1.16 |
| |
K-KLA |
→ N22/7 |
Comfort AAC pushbutton control module |
1.16 |
| |
|
→ N69/2 |
Right door control module |
7.4 |
| W32/2 |
Ground (right rear wall) |
→ M3 |
Fuel pump (FP) |
|
| |
|
→ M14/19 |
Center console compartment CL [ZV] motor |
2 |
| |
|
→ N15/5 |
Electronic selector lever module control module |
1.2 |
| |
Up to 05/05 |
→ N41/1 |
Navigation processor |
2.1 |
| |
|
→ N96 |
Frequency switchover control module |
1 |
| |
|
→ S12 |
Parking brake indicator switch |
2 |
| |
MT |
→ S16/2 |
Backup lamp switch |
1 |
| |
|
→ S16/5 |
Transmission mode switch |
3 |
| |
|
→ S62 |
ATA [EDW] hood switch |
2 |
| |
|
→ S62/7 |
Glove box switch (ATA [EDW]) |
2 |
| |
|
→ S62/8 |
Center console compartment switch (ATA [EDW]) |
1 |
| |
|
→ S93/3 |
SOS pushbutton switch |
3 |
| |
|
→ S93/6 |
MB-Info and breakdown assistance button group |
6 |
| |
|
→ Y3/8 |
Electric control unit (VGS) |
5 |
| |
|
→ Z51/7 |
Interior connector sleeve I (circuit 31, center console) |
|
