Remove/install catch at front of Vario roof - AR77.33-P-3400V
MODEL 171.4
MODIFICATION NOTES
| 7.4.04 | Repair method has been revised | All steps |
| Remove | |||
|---|---|---|---|
| 1 | Remove paneling at front of Vario roof | AR68.30-P-4350V | |

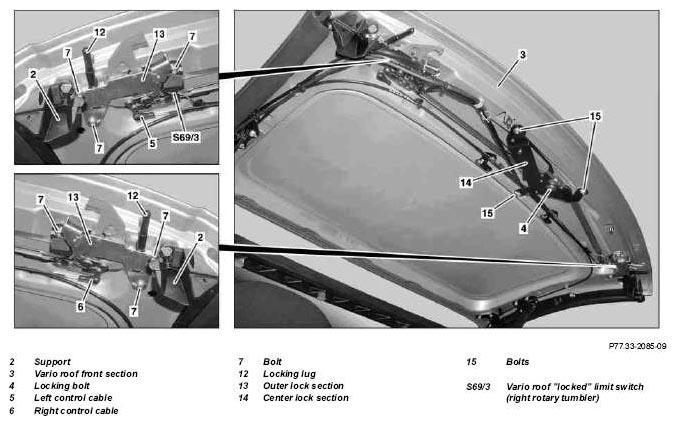

| 2 | Remove supports (2) from Vario roof front section (3) | ||

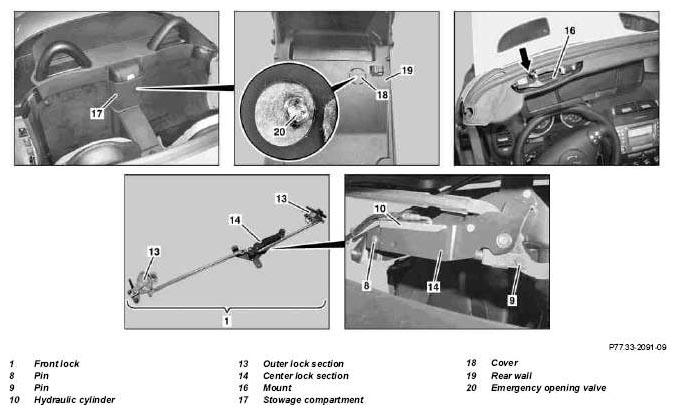

| 3 | Open stowage compartment (17) | ||
| 4 | Break cover (18) out of rear wall (19) of stowage compartment (17) with suitable screwdriver. | ||
| 5 | Turn emergency opening valve (20) approx. 2 turns | ||
| 6 | Lock front lock (1) on locking bolt (4) | ||
| 7 | Unclip left control cable (5) and right control cable (6) from outer locking sections (13). | ||
| 8 | Unscrew bolts (7, 15) and remove front lock (1) from Vario roof front section (3) and allow to hang on electrical and hydraulic lines. | ||
| 9 | Unclip Vario roof "locked" limit switch (right rotary tumbler) (S69/3) from right outer lock section (13) | ||
| 10 | Remove bolts (8, 9) and remove hydraulic cylinder (10) from center lock section (14) | ||
| 11 | Remove electric and hydraulic lines from front lock (1) and remove front lock (1) | ||
| Install | |||
| 12 | Clean guide (arrow) on left and right mount (16) with rag and then lubricate | Lubricant | *BR00.45-Z-1004-06A |
| 13 | Clean left and right locking lug (12) with rag and then lubricate over entire length | Lubricant | *BR00.45-Z-1004-06A |
| 14 | Position hydraulic cylinder (10) in center lock section (14) and install bolt (8) with associated retaining ring | ||
| 15 | Position mount on piston rod for hydraulic cylinders (10) in center lock section (14) and install with associated retaining ring | ||
| 16 | Clip Vario roof "locked" limit switch (right rotary tumbler) (S69/3) to right outer lock section (13) | ||
| 17 | Install electric and hydraulic lines on front lock (1) | ||
| 18 | Screw in bolts (15) | ||
| 19 | Tighten bolts (7) | *BA77.33-P-1001-01A | |
| 20 | Install left control cable (5) and right control cable (6) on outer locking sections (13). | ||
| 21 | Unlock front lock (1) with locking bolt (4) | ||
| 22 | Tighten bolts (15) fully | *BA77.33-P-1001-01A | |
| Risk of injury caused by body parts being trapped or crushed when working on partially open Vario roof (stop mode) or in its closing area as a result of the Vario roof suddenly collapsing | Secure Vario roof with a suitable special tool. | AS77.50-Z-0001-01A | |
| 23 | Remove support for securing the assembly position of the Vario roof and lay Vario roof front section (3) down on cross member above windshield. | ||
| Fig 3 | |||
| 24 | Move both seats toward front, fold seat backrests toward front | ||
| 25 | Close emergency opening valve (20) | *BA77.37-P-1001-01A | |
| 26 | Close opening for emergency opening valve (20) in rear wall (19) with blind plug and close stowage compartment (17) | ||
| 27 | Lock front lock (1) with Vario roof actuation switch | ||
| 28 | Check gap and transition between Vario roof front section (3) and cross member above windshield, adjust if necessary | ||
| Adjust gap between Vario roof and cross member above windshield | AR77.50-P-3035V | ||
| 29 | Unlock front lock (1) with Vario roof actuation switch | ||
| Risk of injury caused by body parts being trapped or crushed when working on partially open Vario roof (stop mode) or in its closing area as a result of the Vario roof suddenly collapsing | Secure Vario roof with a suitable special tool. | - | |
| 30 | Move Vario roof to intermediate position and secure | AR77.50-P-3000-01V | |
| Fig 3 | |||
| 31 | Install paneling at front of Vario roof | AR68.30-P-4350V |
SOFT TOP - MECHANICAL SYSTEM
| Number | Designation | Model 171 | |
|---|---|---|---|
| BA77.33-P-1001-01A | Bolt, lock to Vario roof | Nm | 9 |
SOFT TOP - HYDRAULIC SYSTEM
| Number | Designation | Model 171 | ||
|---|---|---|---|---|
| BA77.37-P-1001-01A | Emergency actuation valve (N) to hydraulic unit | Nm | 2.5 | |
| Fig., see | - | |||
REPAIR MATERIALS
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1004-06A | Lubricant | A 001 989 46 51 |
