Remove/install trunk lid handle with lock cylinder - AR88.50-P-5060V

MODEL 171.4

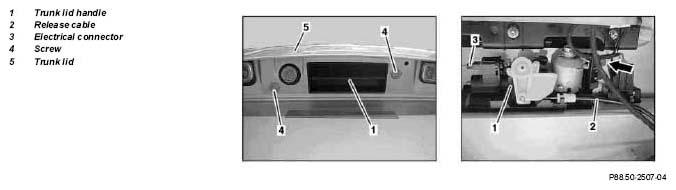

Fig 1: Identifying Trunk Lid Handle With Lock Cylinder Components

Courtesy of MERCEDES-BENZ USA

	Remove/Install
1	Remove trunk lid handle		AR88.50-P-5062V
2	Unhook release cable (2) from trunk lid handle (1)
3	Disconnect electrical connector (3) and concealed electrical connector (arrow)
4	Remove bolts (4)	Secure trunk lid handle (1) against falling down.
			*BA88.50-P-1016-01A
5	Remove trunk lid handle (1) from trunk lid (5)
6	Install in the reverse order

TRUNK LID

Number	Designation		Model 171
BA88.50-P-1016-01A	Bolt, handle plate to trunk lid	Nm	9
