Remove/install trunk lid gas-operated strut - AR88.50-P-5110V
MODEL 171.4
| Remove/install | |||
|---|---|---|---|
| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/ rear-end door or sliding roof. | When moving components, ensure that no body parts or limbs are within the operating range of moving parts. | - | |
| Injury hazard Gas-operated struts are under high pressure and can pinch and crush body parts during work | Only remove and install gas-operated struts in the relaxed position and when the components are secured properly. | - | |
| 1 | Open trunk lid | ||
| 2 | Remove stop buffers (5) together with insert element (8) from left and right hinge lever (6) | Refer to: ↓ |
|
| Adjust trunk lid gas-operated strut | AR88.50-P-5000-02V | ||
| *BA88.50-P-1023-01A | |||
| 3 | Insert clamping pieces (7) into left and right hinge lever (6) | ||

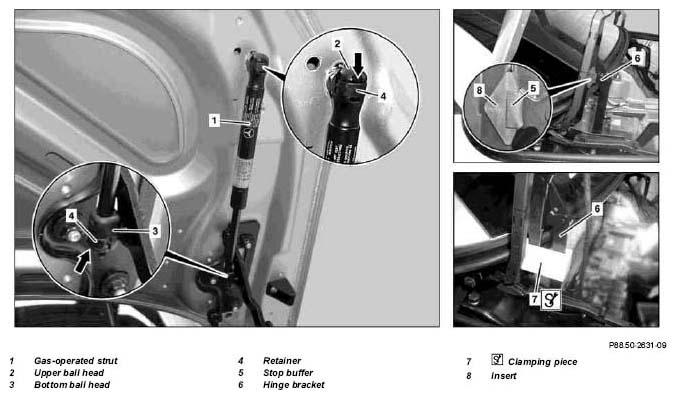

| Figure | |||
| 4 | Insert suitable screwdriver into recess (arrow) on upper ball head (2), lift retainer (4) and unclip upper ball head (2) from trunk lid. | ||
| 5 | Move into recess (arrow) on bottom of ball head (3) with suitable screwdriver, lift retainer (4) and unclip bottom ball head (3) from trunk lid and remove gas-operated strut (1) | ||
| 6 | Install in the reverse order |
TRUNK LID
| Number | Designation | Model 171 | |
| BA88.50-P-1023-01A | Ball head bolts to trunk lid | Nm | 20 |
