Remove/install air inlet grate on engine hood - AR88.40-P-3001V

MODEL 171.4

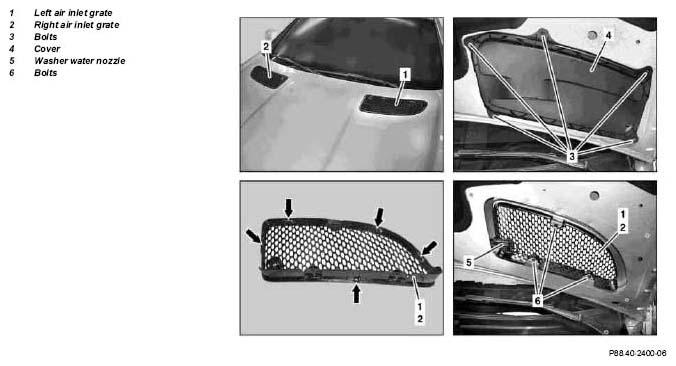

Fig 1: Identifying Air Inlet Grate On Engine Hood Components

Courtesy of MERCEDES-BENZ USA

	Remove/Install
1	Open engine hood and move to upright position		AR88.40-P-1000V
2.1	Unscrew bolts (3) and remove cover (4)	When removing left air inlet grate (1).
3	Unclip wash water nozzle (5) from left air inlet grate and right air inlet grate (2).	The washer water nozzle (5) is arrested with two catch hooks in the left air inlet grate (1) and right air inlet grate (2).
4	Remove bolts (6)
5	Unclip left air inlet grate (1) and right air inlet grate (2) from catch hooks (arrows) from inside toward outside from engine hood with long wedge and remove.	Unclip carefully, otherwise paint on engine hood can be damaged.
			Figure
6	Install in the reverse order

Fig 2: Identifying Mounting Wedge (110 589 03 59 00)

Courtesy of MERCEDES-BENZ USA
