Remove install ATA glove compartment switch - AR80.50-P-0010V
MODEL 171.4 with CODE (551a) Anti-theft alarm system (ATA)
| Remove/Install | |||
|---|---|---|---|

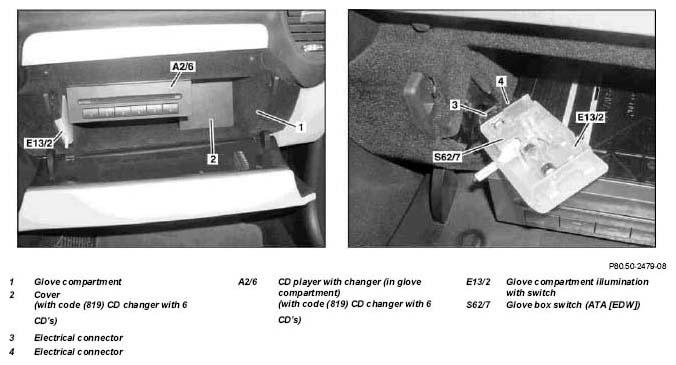

| 1 | Open glove compartment (1) | ||
| 2.1 | Unclip cover (2) by hand and remove from glove compartment (1) | Only on vehicles with code (819) CD changer with 6 CD's | |
| 3.1 | Pull CD player with changer (in glove compartment) (A2/6) toward rear and lay in glove compartment (1) to side to that the glove compartment illumination with switch (E13/2) can be removed | Only on vehicles with code (819) CD changer with 6 CD's | |
| 4 | Unclip glove compartment illumination with switch (E13/2) from glove compartment (1) with mounting wedge | Fig 2 | |
| 5 | Remove electrical connector (3) and electrical connector (4) | ||
| 6 | Remove glove compartment illumination with switch (E13/2) from glove compartment (1) | ||
| 7 | Install in the reverse order |
