Remove/install wheels, rotate if necessary - AP40.10-P-4050V

MODEL 171

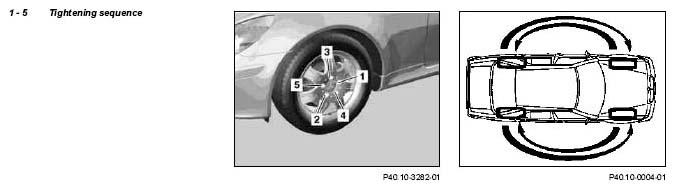

Fig 1: Identifying Wheel Bolt Tightening Sequence

Courtesy of MERCEDES-BENZ USA

	Removing
	Risk of death  caused by vehicle slipping or toppling off of the lifting platform.	Align vehicle between the columns of the lifting platform and position the four support plates at the lifting platform support points specified by the vehicle manufacturer.	-
1	Raise vehicle with vehicle lift
	Lift/jack up vehicle		AR00.60-P-1000V
2.1	Pull off wheel covers	Vehicles with wheel covers.
3	Undo wheel bolts and remove wheels	Socket wrench	Fig 2
4	Check wheel bolts	The round contact shoulders on the lug bolts must be free of oil and grease. Bolts with damaged threads, worn zinc plating on the radius seat or corroded radius seat must be replaced, otherwise they may shear off.
5	Check tires for damage and condition, and measure depth of tread		-
6	Check disk wheels	Checking for: contamination to ensure that radius seats are free of oil and grease Damage to centering, radius seats and rim flanges Corrosion of wheel contact surface
7	Check wheel hub, wheel bolt thread and brake disk bowl at the wheel contact surface for contamination and corrosion	Clean corroded surfaces with a wire brush or emery cloth. Contaminated or corroded wheel bolt thread must be cleaned or recut. Remaining contaminants or corrosion in the thread prevent the necessary preload force of the wheel bolt from being reached, despite the specified torque being reached. The wheel hub should be replaced if the wheel bolt thread is damaged.
	Install
8.1	Rotate road wheels if necessary, maintaining the correct running direction	Except vehicles with mixed tires on front and rear axle.
		Depending on the state of wear after a distance between 5 000 and 10 000 km.
9	Slide on road wheels and tighten the wheel bolts		*BA40.10-P-1001-01A
10	Lower vehicle
11	Rectify tire pressure on all wheels	If there is a loss of tire pressure: determine cause and replace the tire if necessary.
12.1	Fit wheel covers	Vehicles with wheel covers.
13.1	Activate tire pressure loss warning:	On vehicles with tire pressure loss warning, code 477:
		Only when replacing a wheel, changing tires or altering the tire pressure, refer to: ↓
	Perform adjustments to the control system	Activate tire pressure loss warning:	AR54.30-P-1000-02RAV

WHEELS

Number	Designation		Model 124, 129, 168, 170, 171, 202, 208, model 210 without code 979
BA40.10-P-1001-01A	Wheel bolt	Nm	110

Fig 2: Identifying Socket Wrench (230 589 01 09 00)

Courtesy of MERCEDES-BENZ USA
