Remove/install sidebag sensor - AR91.60-P-0710V

MODELS 171.4

Shown on the left side of the vehicle with the floor covering removed

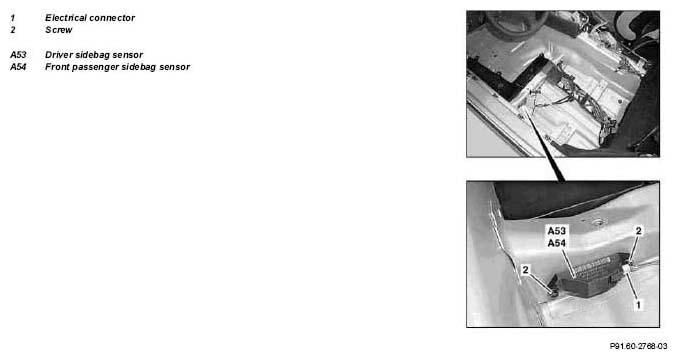

Fig 1: Identifying Sidebag Sensor Components

Courtesy of MERCEDES-BENZ USA

	Remove/install
	Instructions for performing repair, body work and welding on vehicles with airbags and ETR units
1	Switch off the ignition and remove the transmitter key from the EIS control unit
2	Remove left or right front door sill molding		AR68.30-P-4100V
3	Remove the driver seat or the front passenger seat		AR91.10-P-1000V
4	Fold back the floor covering until the driver sidebag sensor (A53) or front passenger sidebag sensor (A54) is accessible
5	Disconnect electrical connector (1).
6	Unscrew bolts (2)		*BA91.60-P-1012-01A
7	Remove the driver sidebag sensor (A53) or the front passenger sidebag sensor (A54)	Installation:  Installation position must be observed. The orientation arrow on the driver sidebag sensor (A53) or the front passenger sidebag sensor (A54) must point toward the outside.
8	Install in the reverse order
