Remove/install seat cushion frame - AR91.10-P-3334V
MODELS 171.4
| Remove/install | |||
|---|---|---|---|

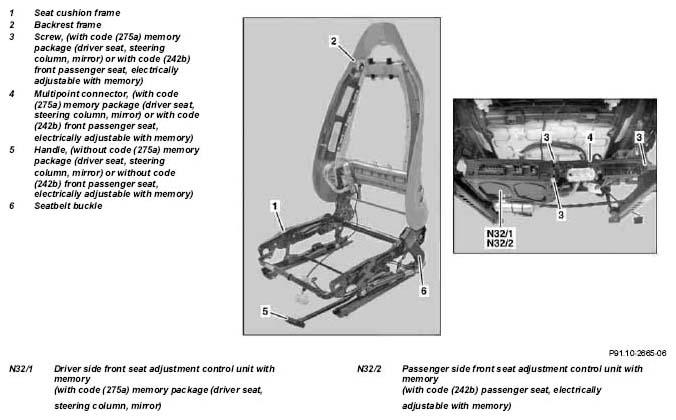

| 1 | Remove the backrest frame (2) with the backrest adjuster from the seat cushion frame (1) | AR91.10-P-3331V | |
| 2.1 | Unclip the driver side front seat adjustment control unit with memory (N32/1) or passenger side front seat adjustment control unit with memory (N32/2) from the bracket | Only when installing a new seat cushion frame (1) on vehicles with code (275a) memory package (driver seat, steering column, mirror) or with code (242b) passenger seat, electrically adjustable with memory. |
|
| 3.1 | Remove screws (3) and then remove the multipoint connector (4) | Only when installing a new seat cushion frame (1) on vehicles with code (275a) memory package (driver seat, steering column, mirror) or with code (242b) passenger seat, electrically adjustable with memory. |
|
| 4.1 | Remove the handle (5) at the seat cushion frame (1) | Only when installing a new seat cushion frame (1) on vehicles without code (275a) memory package (driver seat, steering column, mirror) or without code (242b) passenger seat, electrically adjustable with memory. |
|
| 5.1 | Remove seat belt buckle (6) | Only when installing a new seat cushion frame (1). | AR91.40-P-1515V |
| 6 | Install in the reverse order |
