Spare wheel with folding tire - AH40.10-P-0002-01A
WARNING: This page does not describe the selected car, but rather 25 other vehicles, including the 2007 Mercedes-Benz C350, 2007 Mercedes-Benz C280, 2007 Mercedes-Benz C230, 2006 Mercedes-Benz C55, and 2006 Mercedes-Benz C350. However, it is still accessible from the selected car via links, so may be relevant.
Model 170, 171, 203

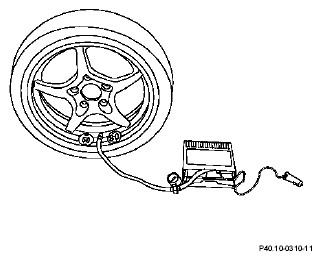

The spare wheel with folding tire is a space-saving alternative to the conventional spare wheel. It allows the customer to reach the nearest Mercedes-Benz Service Station after suffering a flat tire.
- After using the spare wheel, simply deflate the folding tire. The tire folds up completely and can be reused by the customer.
- The maximum speed with the spare wheel with folding tire installed on the vehicle is 80 km/h (50 mph).
- The tread depth of a new folding tire is 3 mm. The service limit is reached at 1.6 mm.
- On vehicles with 16" tires, use the wheel bolts included with the spare wheel with folding tire. Store the bolts with the spare wheel after use.
- A defective spare wheel with folding tire cannot be repaired. The spare wheel with folding tire is to be disposed of in the same way as a standard light-alloy wheel or tire.
