Reset service indicator - AP00.20-P-0042PIT
WARNING: This page does not describe the selected car, but rather 25 other vehicles, including the 2007 Mercedes-Benz C350, 2007 Mercedes-Benz C280, 2007 Mercedes-Benz C230, 2006 Mercedes-Benz C55, and 2006 Mercedes-Benz C350. However, it is still accessible from the selected car via links, so may be relevant.

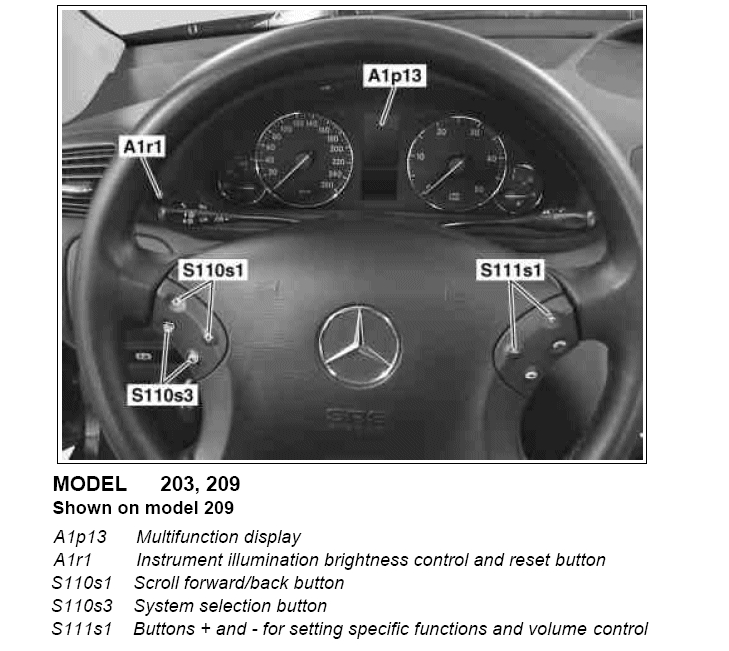

MODEL 203, 209
| Step | Adjust | Additional Information |
|---|---|---|
| 1 | Close trunk lid or liftgate as well as engine hood and doors | Vehicles with code (491) USA version or code (494) USA version |
| 2 | Turn key in ignition switch to position "1". | |
| 3 | Press system selection button (S110s3) repeatedly until the basic display "Kilometer reading" is shown in the multifunction display (A1p13) | |
| 4 | Briefly press variable resistor or dimmer (A1r1) 3 time | An acoustic signal can be heard and the voltage is shown in the multifunction display (A1p13). |
| 5 | Turn key in ignition switch to position "2". | |
| 6 | Press lower scroll forward/back button (S110s1) | The "Service indicator" appears in the multifunction display (A1p13). |
| 7 | Briefly press variable resistor or dimmer (A1r1) once | The menu "Oil type" for selecting the specification of the engine oil used appears in the multifunction display (A1p13). |
| 8 | Select the engine oil grade used by pressing the + and - buttons, setting of specific functions and volume control (S111s1). | The selection option may vary depending on the engine: "Standard", "Qual. 229.3" or "Qual. 229.5". |
| 9 | Press upper scroll forward/back button (S110s1) to confirm | "Confirm oil reset, press R button for 3 s" appears in the multifunction display (A1p13). |
| 10 | Press and hold variable resistor or brightness control (A1r1) pressed for 3 s | "Service confirmed" appears in the multifunction display (A1p13). |
| 11 | Press upper scroll forward/back button (S110s1) | The "Service indicator" appears in the multifunction display (A1p13). |
| 12 | Press upper system selection button (S110s3) | The multifunction display (A1p13) then shows the basic display "Kilometer reading or temperature display" or the "speed display". |
| 13 | Turn key in ignition switch to position "0". |
