Remove/install cover below instrument panel (right) - AR68.10-P-1520V

MODEL 171.4

Shown on vehicle with code (876) Interior light package

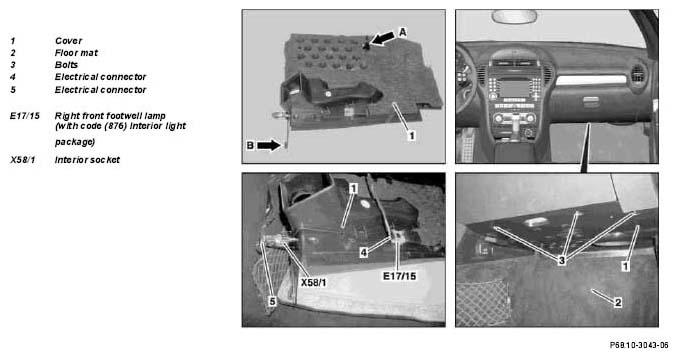

Fig 1: Identifying Cover Below Instrument Panel Components (Right)

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Move passenger seat to end position toward rear	See Operating Instructions
2	Fold back floor covering (2) in passenger footwell
3	Unscrew bolts (3)
4	Pull right cover (1) downward	Installation:  Move pins (arrow A) into lug below instrument panel.
5.1	Disconnect electrical connector (4)	In vehicles with code (876) Interior light package
6	Loosen cover (1) from center console until electrical connector (5) is accessible	Installation:  Arrest catch hook (arrow B) in center console.
7	Disconnect electrical connector (5) from interior socket (X58/1)
8	Remove cover (1) out of the footwell
9	Install in the reverse order
