Move wiper motor to parking position - AR82.30-P-6800-01V

  1. Locate the wiper system in position with the nuts (1).
  2. Position the wiper rods (2) so they are outside of the rotating radius of the wiper motor crank (3).
  3. Plug the electrical connector (4) into the wiper motor (M6/1).
  4. Switch on the ignition, turn the combination switch to position 2 and turn it back to position 0. Switch off the ignition as soon as the wiper motor (M6/1) stops in park position.

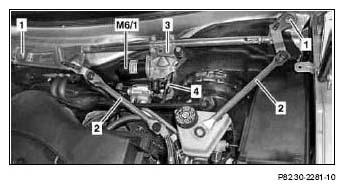

    Fig 1: Identifying Wiper Motor Parking Position
    G05030666Courtesy of MERCEDES-BENZ USA
