Remove and install wiper arm - AR82.30-P-6100V
MODELS 171.4
| Remove/install | |||
|---|---|---|---|
| Risk of injury in the form of trapping or crushing, or even severing of limbs, if caught in windshield wiper mechanism | Always remove ignition key when working on windshield wiper mechanism. | ||
| 1 | Move the wiper arms into park position and switch off the wiper system | ||
| 2 | Switch off the ignition and remove the transmitter key from the EIS control unit | ||
| 3 | Open engine hood and raise to vertical position | AR88.40-P-1000V | |

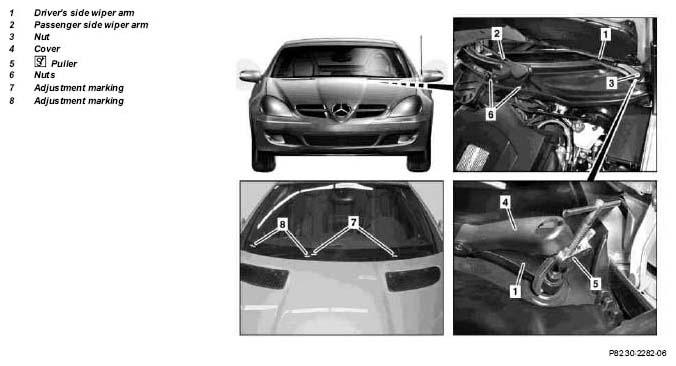

| 4.1 | Unscrew the nut (3) on the driver-side wiper arm (1) | When removing the driver-side wiper arm (1) | |
| *BA82.30-P-1004-01A | |||
| 5.1 | Raise the cover (4) on the driver-side wiper arm (1) | When removing the driver-side wiper arm (1) | |
| 6.1 | Attach a puller (5) to the driver-side wiper arm (1), remove the driver-side wiper arm (1) from the left wiper shaft and then remove the puller (5) | When removing the driver-side wiper arm (1) | |
| Fig 2 | |||
| 7.1 | Remove driver-side wiper arm (1) | When removing the driver-side wiper arm (1) |
|
| 8.1 | Unscrew the nut (6) on the passenger-side wiper arm (2) | When removing the passenger-side wiper arm (2) | |
| *BA82.30-P-1004-01A | |||
| 9.1 | Loosen the passenger-side wiper arm (2) from the right wiper shaft and remove it | When removing the passenger-side wiper arm (2) |
|
| 10 | Install in the reverse order |
WINDSHIELD WIPER
| Number | Designation | Model 171 | |
|---|---|---|---|
| BA82.30-P-1004-01A | Nut on wiper arm | Nm | 19 |
