Wiper system (WSA), location of components - GF82.30-P-0003-01SK

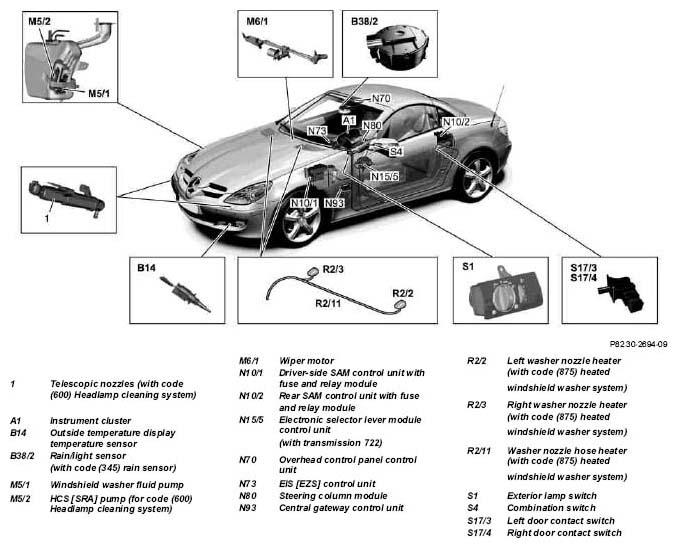

Fig 1: Identifying Wiper System Components Location

G05030549

Courtesy of MERCEDES-BENZ USA

Shown without code (614) Bi-xenon headlamp unit
