Satellite radio (SDAR), component networking - GF82.60-P-0006-01SKU

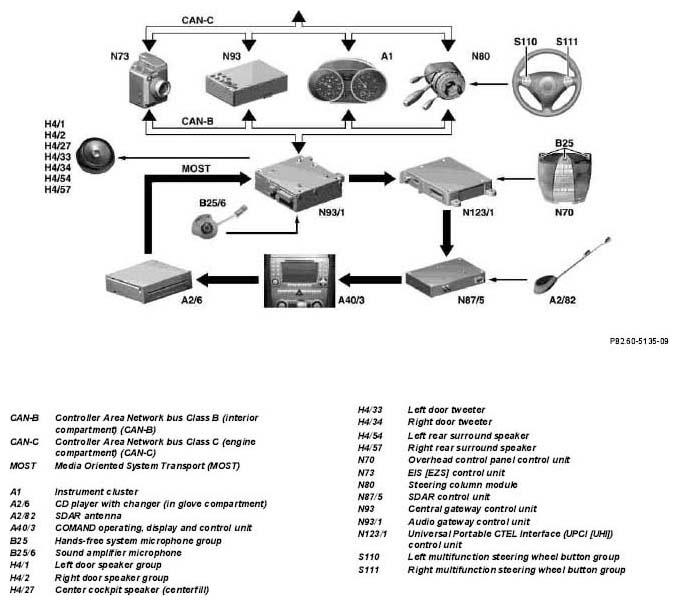

Fig 1: Satellite Radio Component Networking Chart

Courtesy of MERCEDES-BENZ USA

Shown with code (530) COMAND APS USA (with navigation system), With code (810) Sound system, with code (819) CD changer (6 CDs)
