Illumination of stowage compartment between the backrests, location/task - GF82.20-P-4306SK

MODEL 171.4 with CODE (876) Interior lights package

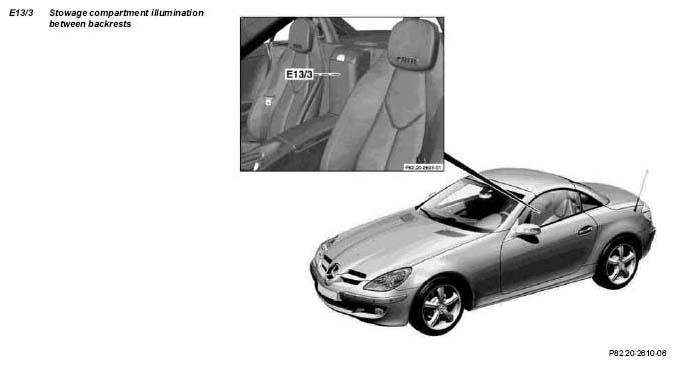

Fig 1: Identifying Illumination Of Stowage Compartment Between Backrests Location
G05030548Courtesy of MERCEDES-BENZ USA
Illumination of stowage compartment between the backrests, location The illumination of the stowage compartment between the backrests (E13/3) is in the stowage compartment between the driver and the front passenger. This compartment is located on the rear wall of the vehicle interior.
Illumination of stowage compartment between the backrests, task The illumination of stowage compartment between the backrests (E13/3) illuminates the stowage compartment when the lid is opened.
