Wiper motor, component description - GF82.30-P-5010RC
MODEL 171.4 as of model year 09/YoM 08 model refinement package
M6/1 Wiper motor

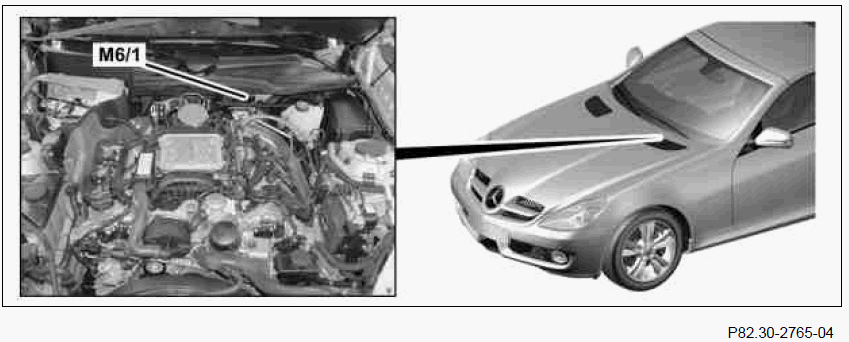

Location The wiper motor is centrally located in the engine compartment in front of the windshield.
Task The wiper motor uses linkage to move the wiper arms. The request to switch on the wiper motor comes from the driver SAM control unit with fuse and relay module (N10/1).
