Additional battery, location/purpose - GF82.95-P-4204R

MODEL 230 with CODE (855) TELE AID

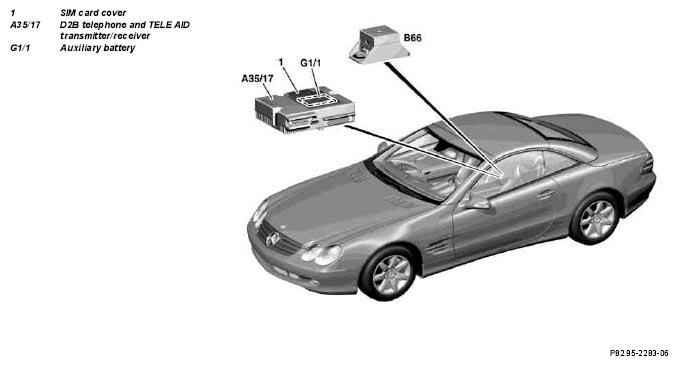

Fig 1: Identifying Additional Battery Components Location
G05076360
  Additional battery, location The additional battery is integrated in the telephone transmitter/receiver and TELE AID, D2B
  Additional battery, purpose Maintaining power supply of TELE AID system. If the power supply to the vehicle battery is interrupted because of an accident (battery sheared off), the power supply is maintained for a limited period by the backup battery.
