Move Vario roof into intermediate position and secure - AR77.50-P-3000-01R

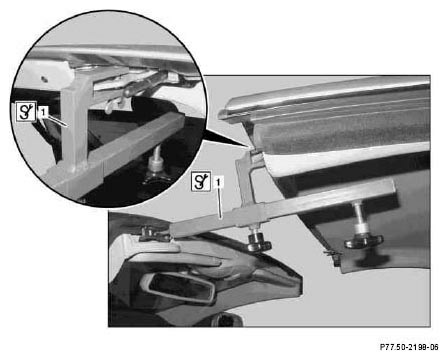

Fig 1: Identifying Support (230 589 04 63 00)

Courtesy of MERCEDES-BENZ USA

1. Switch on ignition and actuate Vario roof switch until Vario roof has reached intermediate position.

   The illustration shows the Vario roof in the intermediate position (C-pillars are positioned at an angle of approx. 90°). The trunk lid is in the assembly position.

   Fig 2: Identifying Vario Roof In Intermediate Position

   Courtesy of MERCEDES-BENZ USA
2. Secure Vario roof intermediate position. For this purpose install support (1) on left mount for front catch (2) and left catch section on Vario roof front section (3).

   The support (1) can be shortened and extended to secure the intermediate position of the Vario roof.

3. Switch off ignition.

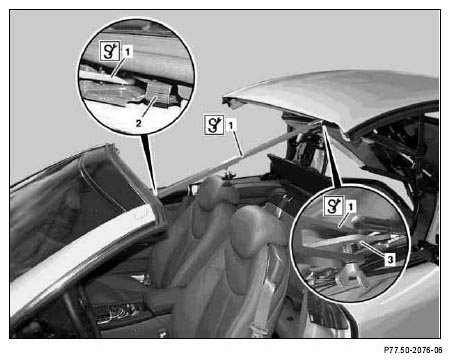

   Fig 3: Identifying Support On Left Mount For Front Catch

   Courtesy of MERCEDES-BENZ USA

Illustration shows detailed installation of support (1).

Fig 4: Identifying Support

Courtesy of MERCEDES-BENZ USA
