Roll bar indicator and warning messages, function - GF91.59-P-4000R

MODEL 230

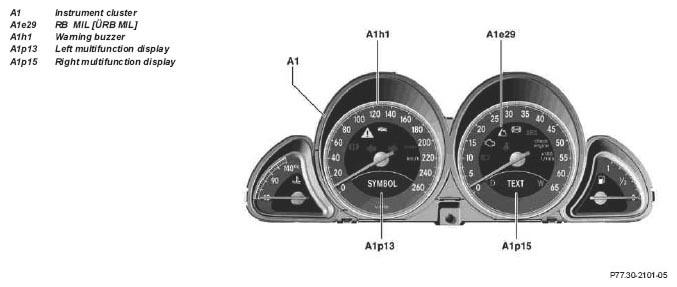

Fig 1: Identifying Roll Bar Indicator And Warning Messages Components

Courtesy of MERCEDES-BENZ USA

The visual warning message is provided via the roll bar indicator lamp (A1e29) , the audible warning message is provided via the warning buzzer (A1h1) .

Fault/function event	Symbol in multifunction display, left (A1p13)	Display text in multifunction display, right (A1p15)	visual/audible warning message
Roll bar crash deployment is not guaranteed due to a potential fault	Roll bar symbol	Raise roll bar (red)	Announcement gong. Roll bar warning light (A1e29).
Roll bar cannot deploy because the Vario roof mechanism is locked.	Roll bar symbol (if retracted). Vario roof symbol (if roll bar is raised).	Lock Vario roof (red)	Flashing light in Vario roof indicator lamp (N72e3). Gong for 10 sec if V > 8 km/h. Roll bar warning light (A1e29) if V > 8 km/h until fault is eliminated.
Roll bar is disconnected from the cylinder (after crash deployment) and there is a request to lower the roll bar	Roll bar symbol	First raise roll bar (white)	Announcement gong.

	Vario roof gong, location/task/design/function		GF77.39-P-3012R
	Vario roof switch, location/task/design/function		GF77.39-P-3000R
	Roll bar switch, location/task/design/function		GF91.59-P-2100R
	Display indicator/warning message via multifunction display, function		GF54.30-P-2012R
	Roll bar warning light, location/task/function		GF91.59-P-3100R
