Close access opening for stamping guide - AR60.00-P-0800-07R
COMMERCIALLY AVAILABLE TOOLS
| Number | Designation |
|---|---|
| WH58.30-Z-1038-02A | Manual temporary fastener, dia.6.4 mm - clamping range 0 -15 mm, identification color silver Firma Hausmann GmbH D-34346 Hann. Munden, Germany |
| WH58.30-Z-1003-29A | Hand riveter |
WORKSHOP EQUIPMENT
| WE58.40-Z-1003-14A | Blind rivet tool |
REPAIR MATERIALS
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1001-13A | Rivet | A 003 990 35 97 |

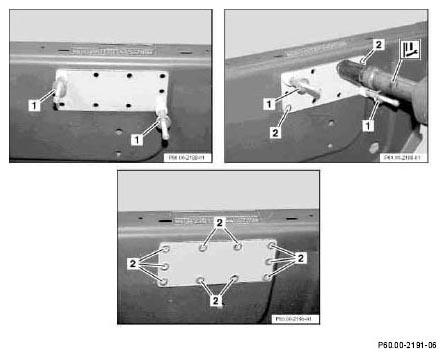

- Fix closing plate (SP-delivery scope) with screw-on clamping grippers (1).
- Rivet closing plate with flat head rivets Polygrip Ø 6.4x14 (2) on cross member.
