Remove/install inside rearview mirror - AR68.40-P-0001R
MODEL 230.4
| Remove/install | |||
|---|---|---|---|
| Risk of injury Skin, eye and respiratory system irritation may occur through contact or inhalation of substances contained in the mirror lens | Wear protective gloves and safety glasses. | AS60.00-Z-0008-01R | |
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| 1 | Remove overhead control panel control unit | AR82.20-P-1000R | |

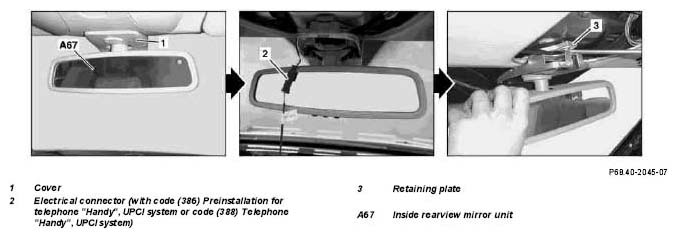

| 2 | Unclip covering (1) | ||
| 3 | Disconnect electrical connector (2) | On vehicles with code (386) Preinstallation for telephone "Handy", UPCI system or code (388) Telephone "Handy", UPCI system | |
| 4 | Remove cover (1) | ||
| 5 | Pry off inside rearview mirror unit (A67) of retaining plate (3) with suitable prying tool. | ||
| 6 | Remove inside rearview mirror unit (A67) | ||
| 7 | Install in the reverse order | ||
| 8 | Program garage door opener transmitter unit | Only when replacing inside rearview mirror (A67) on vehicles with code (231) Garage door opener or code (232) Garage door opener with frequency 284-390 MHz. | |
| Notes on programming garage door opener transmitter unit | AH68.05-P-0002-01A |
