Steering wheel heater switch, location / task - GF46.11-P-4001M
MODEL 220.025 /026 /028 /063 /065 /067 /070 /073 /074 /075 /083 /084 /087 /125 /126 /128 /165 /167 /170 /173 /174 /175 /176 /178 /183 /184 /187 /874 /875 /876 /878 with CODE (443) Steering wheel heater
MODEL 215.373 /374 /375 /376 /378 with CODE (443) Steering wheel heater
Shown on Model 220

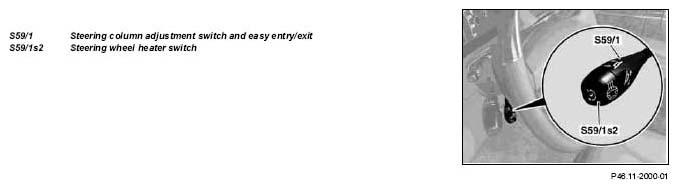

| Steering wheel heater switch, location | The steering wheel heater switch (S59/1s2) is integrated in the front section of the steering column adjustment switch and easy entry/exit (S59/1). | ||
| Steering wheel heater switch, task | The steering wheel heater is switched off and on with the steering wheel heater switch (S59/1s2). In addition the steering wheel heater switch (S59/1s2) takes over the function display by means of an integrated function LED. |
