ME-SFI transmission shift delay, function - GF07.61-P-4023AM
ENGINE 113.990 #2 in MODELS 211, 219
ENGINE 113.991 #2 in MODELS 215, 220
ENGINE 113.992 #2 in MODEL 230
ENGINE 113.993 #2 in MODEL 463
ENGINE 113.995 #2 in MODEL 230
The transmission shift delay is designed to warm up the catalytic converters more rapidly to operating temperature after engine start. The transmission shift delay is performed completely electronically in combination with the automatic transmission (722.6). No additional components are required.

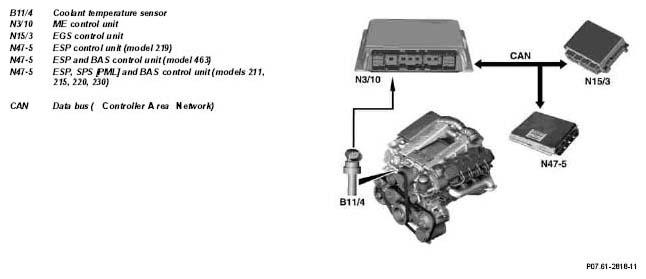

The ME control unit requests the ETC control unit via the CAN data bus to alter the gear shift curves. Partial load gear shifts (1-2-1, 2-3-2) thus take place at higher engine speeds or at higher vehicle speeds.
The transmission shift delay is active for max 160 seconds, if:
- Coolant temperature at start < 50°C
- Speed <53 km/h
| Coolant temperature sensor, location/task/design/function | GF07.04-P-5026AM | ||
| ME-SFI control unit, location/task/design/function | GF07.61-P-5000AM |
