ME-SFI safety fuel shutoff - function - GF07.61-P-3018SM
ENGINE 113.986
ENGINE 113.987
ENGINE 113.988
ENGINE 113.989

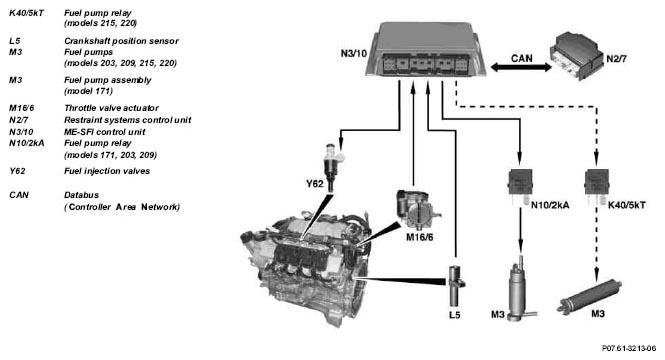

The safety fuel shutoff is activated for:
- Mechanical faults in the throttle valve actuator (M16/6):
→ The engine speed is limited (to approx. 1400 rpm) by cutting out the fuel injection valves (Y62).
- In the case of errors of the engine speed signal "TNA":
→ Actuation of the fuel pump (FP) (M3) is interrupted.
- Crash signal from the restraint systems control unit (N2/7) with triggering of airbags:
→ The ME control unit (N3/10) switches off the fuel pump (FP) and shortly actuates the fuel injection valves so that the fuel system is unpressurized.
| Component description for the fuel injection valves | Y62 | GF07.03-P-6010SM | ||
| Component description for the crankshaft position sensor | L5 | GF07.04-P-6010SM | ||
| Component description for the ME-SFI [ME] control unit | N3/10 | GF07.61-P-6000SM | ||
| Component description of throttle valve actuator | M16/6 | GF30.20-P-2020SM | ||
| Component description of fuel pump | M3 | GF47.20-P-2000SM | ||
| Component description for the fuel pump relay | N10/2kA | Models 171, 203, 209 | GF47.20-P-2010SM | |
| K40/5kT | Model 215, 220 |
