Component description for purge control valve - GF47.30-P-2020SM

MODEL 171 with ENGINE 113.989

MODEL 203 with ENGINE 113.988

MODEL 209 with ENGINE 113.987

MODEL 215 with ENGINE 113.986

MODEL 220 with ENGINE 113.986

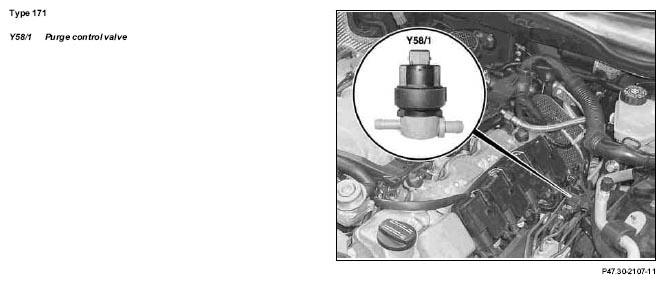

Fig 1: Identifying Purge Control Valve - Type 171

The purge control valve is located in the engine compartment next to the left wheelhouse.

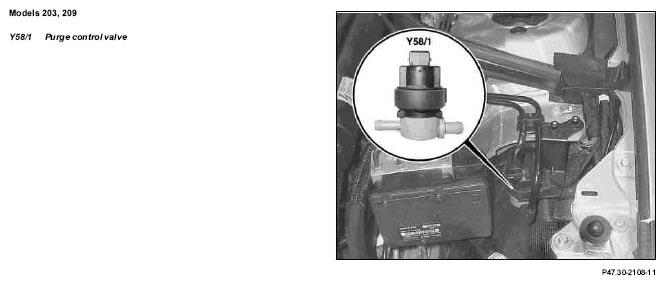

Fig 2: Identifying Purge Control Valve - Models 203, 209

The purge control valve is located in the front left of the engine compartment.

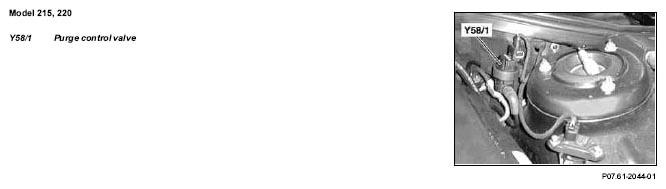

Fig 3: Identifying Purge Control Valve - Model 215, 220

The purge control valve is located in the engine compartment next to the left wheelhouse.

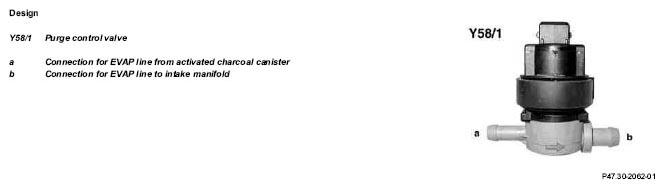

Fig 4: Identifying Purge Control Valve

Task

In case of purging the purge control valve opens the EVAP line between the activated charcoal canister and intake manifold. This allows suctioning off of fuel vapors out of the activated charcoal canister.

The purge control valve is always closed when the vehicle is at rest.

Function

The purge control valve () is actuated by the ME control unit (N3/10) by means of a PWM signal, according to the operating conditions of the engine.

The passage for the purge line from the activated charcoal canister to the intake manifold (a =>b) is opened at the same time.

The voltage supply takes place over circuit 87 M2".

PDM = Pulse Duration Modulation
