Component description for the exhaust system - GF49.00-P-3010SM

ENGINE 113.986 in MODELS 215, 220

ENGINE 113.987 in MODEL 209

ENGINE 113.988 in MODEL 203

ENGINE 113.989 in MODEL 171

Model 171

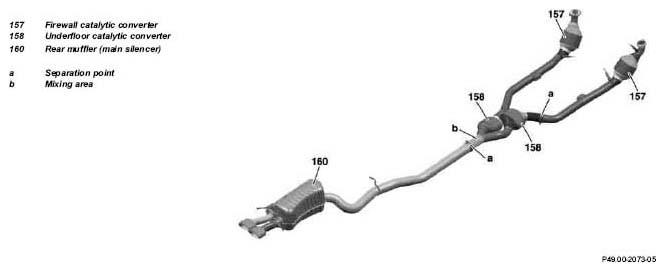

Fig 1: Identifying Exhaust System Components - Model 171

Model 209 up to MY 03

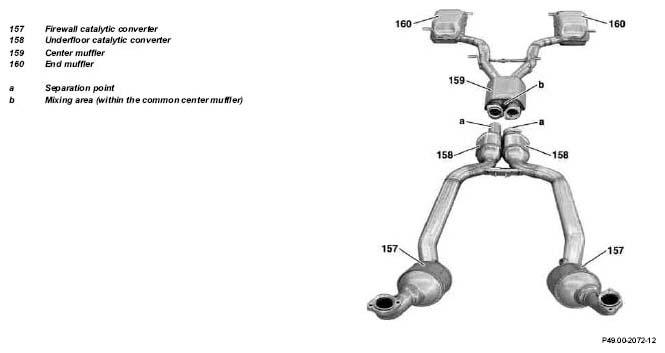

Fig 2: Identifying Exhaust System Components - Model 209 Up To MY 03

Models 203, 209 from MY 04

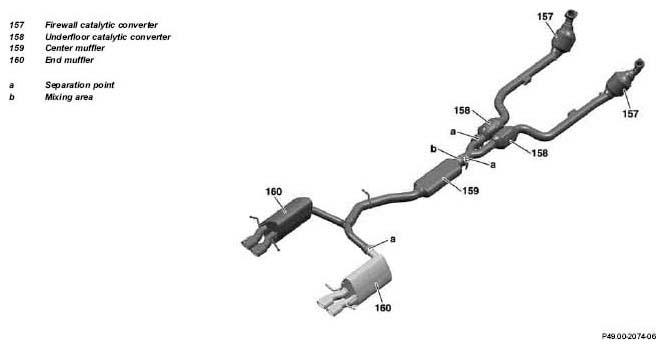

Fig 3: Identifying Exhaust System Components - Models 203, 209 From MY 04

Model 215, 220

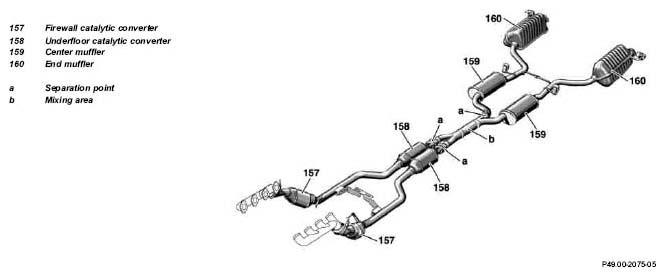

Fig 4: Identifying Exhaust System Components - Model 215, 220

Task

The tasks of the exhaust system are:

Directing the exhaust gases with a slight backpressure to the rear of the vehicle
Absorbing the noise of the exhaust gases
Optimizing power output of engine
Exhaust cleaning through catalytic converters

The AMG exhaust systems from models 171, 203 and 209 guarantee fulfillment of the EU 4 limits.

Design

The exhaust system is an all-stainless steel design. This increases its working life significantly.

The catalytic converter housings are designed with double walls for noise reduction (air gap insulation).

The pulsating exhaust gases in the exhaust lines are calmed in the mixing area.
