Removing and installing door sealing frame - AR72.10-P-2120N

MODEL 215

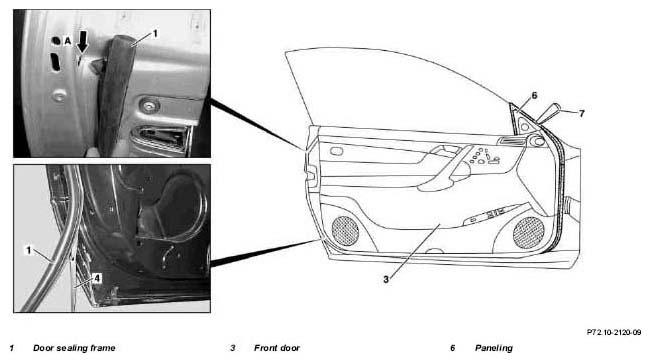

Fig 1: Identifying Door Sealing Frame Components (1 Of 2)

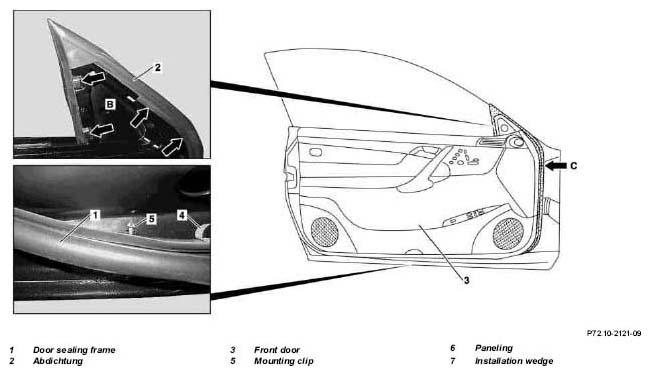

Fig 2: Identifying Door Sealing Frame Components (2 Of 2)

	Removal, installation
1	Remove outer sealing rail		AR72.10-P-1700N
2	Unclip paneling (6) with installation wedge (7)	Installation wedge	Figure
3	Remove old door sealing frame (1)	Do not use sharp tools to avoid damaging paint
4	Remove glue residues from front door (3) and remove grease from subsurface with naphtha
5	First press new door sealing frame (1) into door frame on side of front door lock (arrow A)
6	Remove protective strap (4) continuously from gluing surface and completely attach door sealing frame (1)	Clip mounting clip (5) into door frame. Ensure that door sealing frame (2) is seated properly.
7	Uniformly press on door sealing frame (1) with hand roller	Hand roller	Figure
8	Pull seal (2) over mirror triangle and hook into mirror triangle (arrow B)	Connect seal (2) with door sealing frame (1) (arrow C)

Fig 3: Identifying Installation Wedge (110 589 03 59 00)

Fig 4: Identifying Roller (168 589 05 63 00)
