Remove/install rubber buffer on level control valve unit - AR32.31-P-0650-01I
AIR SUSPENSION
| Number |
Designation |
Model 220 |
| BA32.22-P-1007-03A |
Rubber buffer to valve unit |
Nm |
8 |

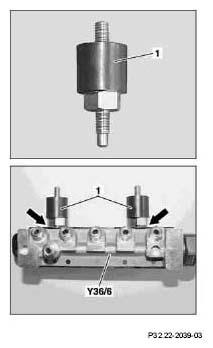

Unscrew rubber buffer (1) from valve unit (Y36/6).
During installation make sure that the rubber buffer (1) is screwed in with the longer grub screw into the valve unit (Y36/6).
After tightening a gap between the hexagon and valve unit (Y36/6) of approx. 1mm must be given (arrows).
