Remove/install stabilizer bar on front axle - AR32.20-P-0300I: Notes

MODEL 220 (except 220.083 /084 /087 /183 /184 /187) except CODE (487) Active Body Control (ABC)

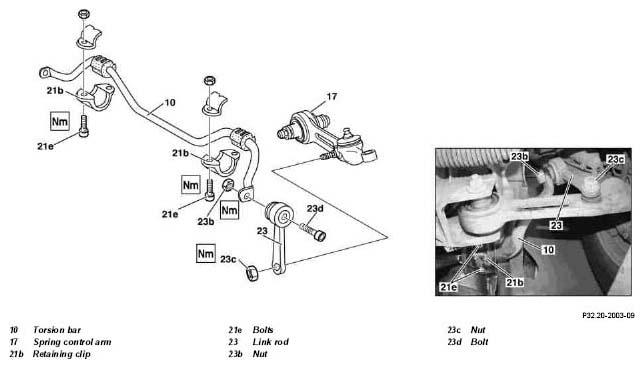

Fig 1: Identifying Stabilizer Bar On Front Axle Remove/Install Components
G04849341
MODIFICATION NOTES

7.10.04 If the rubber boot of the stabilizer bar pivot bushing is damaged, the stabilizer bar pivot bushing (and not the spring control arm) has to be replaced. 3rd stage
REMOVINGINSTALLING Remove/install
DANGER Risk of death  caused by vehicle slipping or toppling off of the lifting platform. Align vehicle between the columns of the lifting platform and position the four support plates at the lifting platform support points specified by the vehicle manufacturer. AS00.00-Z-0010-01A
NOTES Replace self-locking nuts and bolts.   AH00.00-N-0001-01A
1 Raise vehicle with lifting platform
2.1 Remove bottom engine compartment paneling Vehicles with gasoline engines AR61.20-P-1105M
2.2 Remove bottom section of soundproofing capsule Vehicles with diesel engines AR94.30-P-5300M
3 Unscrew nut (23c) and pry link rod (23) off spring control arm (17). INSPECT Check rubber boot of stabilizer bar pivot bushing in spring control arm (17) for damage and replace stabilizer bar pivot bushing if necessary:

    Fit new stabilizer bar pivot bushing.
IMPORTANTInstallation:  Press link rod (23) onto hexagon of stabilizer bar pivot bushing in spring control arm (17).
AR32.20-P-0310M
    TORQUE SPECIFICATION *BA32.20-P-1001-02H
4 Unscrew bolts (21e) and remove retaining bracket (21b) IMPORTANT The threaded connection has been changed from M8 to M10. When using new parts the nut M8 possibly fitted in the frame-type integral support is to be replaced by a nut M10. Drill the hole in the frame-type integral support accordingly and protect against corrosion.
    TORQUE SPECIFICATION *BA32.20-P-1003-02H
5 Take off torsion bar (10) INSPECT Check rubber mount on stabilizer bar (10) for damage and wear and replace stabilizer bar (10) if required.
IMPORTANT The rubber mounts are molded onto the torsion bar (10).

6 Unscrew nut (23b) and remove link rod (23) from torsion bar (10). NOTESInstallation:  Tighten nut (23b) only when vehicle is in ready-to-drive condition. To do so, counterhold bolt (23d) with shortened Allen wrench (shop-made). Turn steering if necessary.
INSPECT Check rubber mount of link rod (23) for damage and replace link rod (23) if necessary.

    TORQUE SPECIFICATION *BA32.20-P-1002-02H
7 Install in the reverse order
TORQUE SPECIFICATION FRONT AXLE STABILIZER BAR

Number Designation Models 220 except 220.083/084/087/183/184/187
BA32.20-P-1001-02H Nut, link rod to spring control arm Nm 150
BA32.20-P-1002-02H Nut, link rod to stabilizer bar Nm 150
BA32.20-P-1003-02H Bolt, torsion bar to front end Nm 40
