Remove/install rear suspension valve body - AR32.50-P-0002N

MODELS 215.373 /374 /375 /376 /378 /379

MODELS 220.028 /063 /065 /067 /070 /073 /074 /075 /128 /165 /167 /170 /173 /174 /175 /178 /179 with CODE (487a) Active body control (ABC)

MODELS 220.176 except CODE (979) Special protection version

Illustrated on model 215

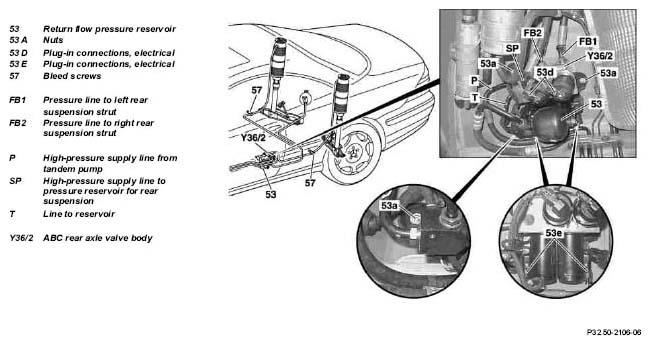

Fig 1: Identifying Rear Suspension Valve Body Remove/Install Components (Model 215)

MODIFICATION NOTES

22.10.02	Safety note, included for the first time	AS00.00-Z-0010-01A
22.10.02	Safety note, included for the first time	AS00.00-Z-0005-01A
22.10.02	Special instructions on connecting hydraulic lines and hoses have been added	AH32.50-P-0001-02A

	Remove/install
	Risk of death cased by vehicle slipping or toppling off of the lifting platform.	Align vehicle between the columns of the hydraulic hoist and position the four support plates below the hoist support points specified by the vehicle manufacturer.	AS00.00-Z-0010-01A
	Risk of injury to skin or eyes caused by hydraulic fluid spraying out under pressure. Risk of poisoning caused by swallowing hydraulic fluid.	Depressurize the hydraulic system completely before starting any work on the system. Wear protective clothing and safety glasses.	AS00.00-Z-0013-01A
	General instructions for connecting hydraulic lines and hoses	Models 215, 220, 230	AH32.50-P-0001-02A
	Notes on active body control suspension	Models 215, 220, 230	AH32.50-P-0001-01N
1	Open the bleed screws (57) to release the pressure from the ABC system	The engine must be switched off for at least 5 minutes. To prevent the body of the vehicle from sinking rapidly, open the bleed screw (57) slowly to limit the flow rate of the emerging hydraulic fluid. Allow the emerging hydraulic fluid to drain into a suitable container.
			*BA32.50-P-1001-02B
2	Remove the return line to the pressure reservoir (53)		AR32.50-P-0012N
3	Unscrew high-pressure line to left rear suspension strut (FB1) and the pressure line to the right rear suspension strut (FB2) from rear ABC valve body (Y36/2)		*BA32.50-P-1002-01A
4	Unscrew high-pressure supply line to rear suspension pressure reservoir (SP) and pressure line from tandem pump (P) from the ABC valve body for the rear suspension (Y36/2)	To allow time for the ABC system to depressurize completely, wait at least 15 minutes before disconnecting the high-pressure supply line from the tandem pump (P) and the high-pressure supply line to the pressure reservoir for the rear suspension (SP).
			*BA32.50-P-1002-01A
5	Disconnect the electrical plug-in connections (53d) and the plug-in connections (53e) from the ABC valve body for the rear suspension (Y36/2)	Installation: The electrical plugs and connections on the ABC valve body for the rear suspension (Y36/2) are color coded; take care to ensure that they are reconnected in the correct positions.
6	Unscrew the nuts (53a) and remove the ABC valve body for the rear suspension (Y36/2) together with its mounting bracket		*BA32.50-P-1009-01A
7	Detach the ABC valve body for the rear suspension (Y36/2) from its mounting bracket		*BA32.50-P-1006-01A
8	Install in the reverse order
	Risk of accident caused by vehicle starting off by itself when engine is running. Risk of injury caused by contusions and burns when working in engine during starting procedure	Secure vehicle to prevent it from moving. Wear closed and snug-fitting work clothes. Do not grasp hot or rotating parts.	AS00.00-Z-0005-01A
9	Fill and bleed ABC system		AR32.50-P-0021N

ACTIVE BODY CONTROL LINES

Number	Designation			Model 215	Model 220
BA32.50-P-1001-02B	Bleed screw on soldered fitting in hydraulic line	M10x1	Nm	20	20

ACTIVE BODY CONTROL SUSPENSION

Number	Designation		Model 215	Model 220
BA32.50-P-1002-01A	Union nut, line to front/rear axle valve body	Nm	50	50
BA32.50-P-1006-01A	Bolt, valve body to retaining plate	Nm	10	10
BA32.50-P-1009-01A	Nut, bracket for rear axle valve body and return pressure reservoir to body	Nm	10	10
