Pressure supply valve unit, location/task/design - GF32.50-P-4210A
>>
Pressure supply valve unit, location - GF32.50-P-4210-01S
Pressure supply valve unit, location - GF32.50-P-4210-01S
Models 215, 220

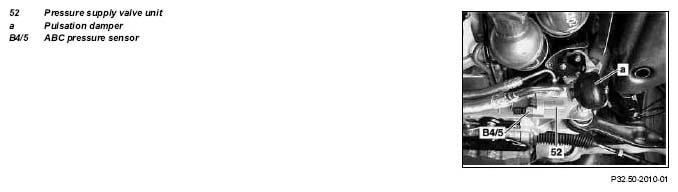

Fig 1: Identifying Pressure Supply Valve Unit And ABC Pressure Sensor
At middle right of vehicle floor.
