Active body control (ABC) location of hydraulic components - GF32.50-P-0001-06A
Models 215, 220

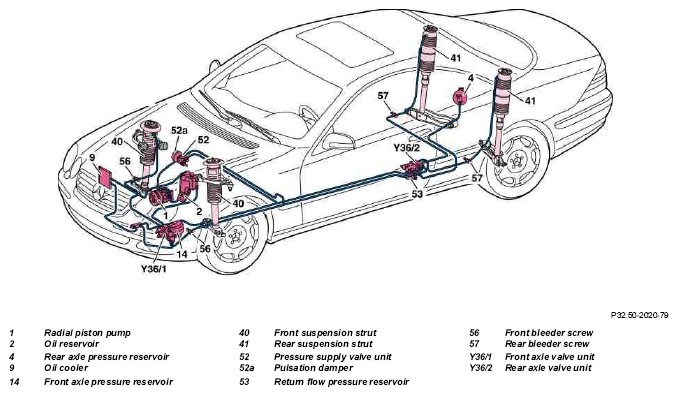

Fig 1: Identifying Active Body Control (ABC) Hydraulic Components Location
