| 1 |
Push cover on sliding roof to rear |
|
|
| 2 |
Open sliding/pop-up roof approx. 10 cm |
|
|
| 3 |

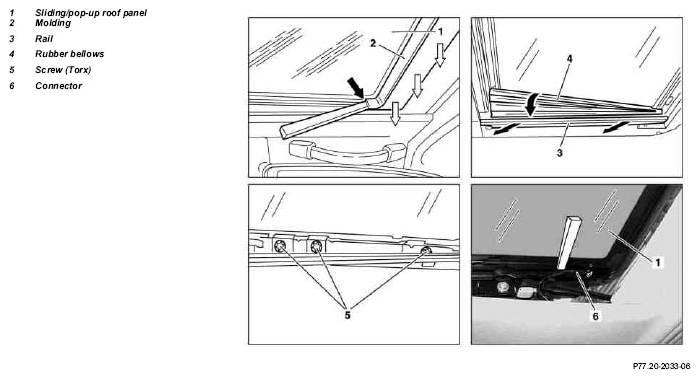

Remove molding (2) |
Installation wedge |
Fig 2 |
| |
|
Before pulling off press off molding (2) on outside with plastic wedge (see arrow) |
|
| 4 |
Move sliding/pop-up roof to pop-up position |
|
|
| 5 |
Remove rail (3) on rubber bellows (4) in direction of arrow |
Unclip rail (3) at front first |
|
| 6 |
Unhook rubber bellows (4) on sliding/pop-up roof panel (1) so that Torx screws (5) are accessible |
Do not damage rubber bellows (4) |
|
| 7 |
Unscrew Torx screw (5) k |
 |
Fig 3 |
| |
|
 |
*BA77.20-P-1004-01A |
| 8 |
Unclip and disconnect connector (6) from frame for sliding/pop-up roof (1) with installation wedge |
 |
Fig 2 |
| |
|
Do not damage frame for sliding/pop-up roof (1). Do not pull on cable to disconnect connector (6) |
|
| 9 |
Remove sliding/pop-up roof panel (1) |
|
|
| 10 |
Install in opposite order |
|
|
| 11 |
Adjust sliding/pop-up roof panel (1) in relation to outer roof surface and tighten Torx screws (5) |
|
AR77.20-P-1100M |
