Removing and installing sliding roof drive - AR77.20-P-1800E
MODEL 202 with CODE (412b) Electric tilting/sliding roof with CODE (414a) Glass electric tilting/sliding roof
MODEL 210 with CODE (414a) Glass electric tilting/sliding roof
MODEL 215 with CODE (414a) Glass electric tilting/sliding roof
MODEL 220 with CODE (414a) Glass electric tilting/sliding roof

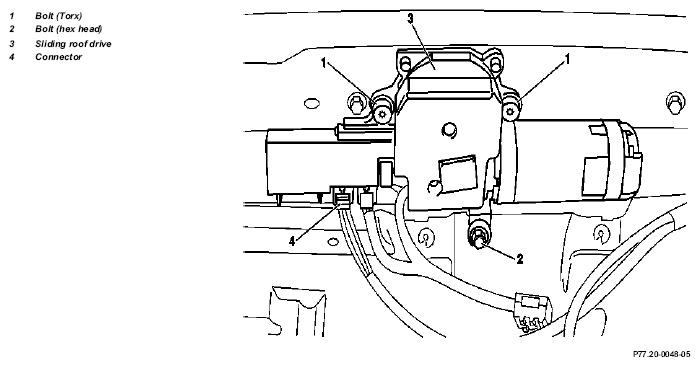

Shown without headliner
| From-, Inserting | |||
| 1 | Remove lining on sliding/tilting roof | Model 202 | AR77.20-P-0500E |
| 2 | Close sliding/tilting roof | ||
| 3.1 | Remove front dome lamp unit | Model 202 | AR82.20-P-0110E |
| Typ 210 | AR82.20-P-0110F | ||
| 3.2 | Remove overhead control panel | Typ 220; 215 | AR82.20-P-1000M |
| 4 | Remove bolts (1, 2) | *BA77.20-P-1001-01A | |
| *BA77.20-P-1002-01A | |||
| 5 | Remove sliding roof drive (3), disconnect connector (4) | Model 202 Check position of marks before installation ↓ |
|
| Adjust lift angle Model 210, 220, 215 Check position of marks before installation ↓ |
AR77.20-P-1700-03E | ||
| Remove folding rubber element, adjust lifting angle | AR77.20-P-1400F | ||
| 6 | Install in reverse order |
| Number | Designation | Model 202 | Model 210 | Model 220 | Model 215 | ||
|---|---|---|---|---|---|---|---|
| BA77.20-P-1001-01A | Bolt to sliding roof drive | Hex head | Nm | 8 | 8 | 8 | 8 |
| BA77.20-P-1002-01A | Bolt to sliding roof drive | Torx | Nm | 4 | 4 | 4 | 4 |
| Hex socket | Nm | 4 | 4 | 4 | 4 | ||
